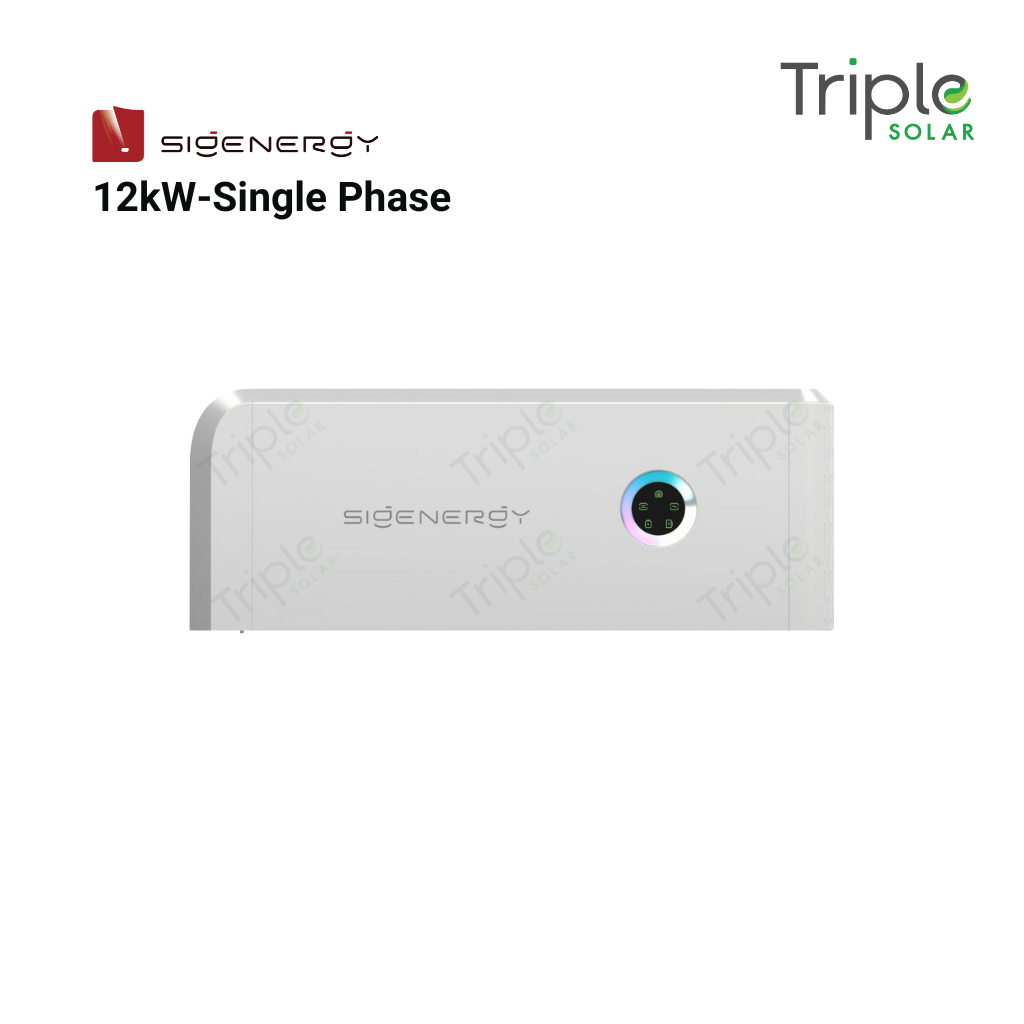

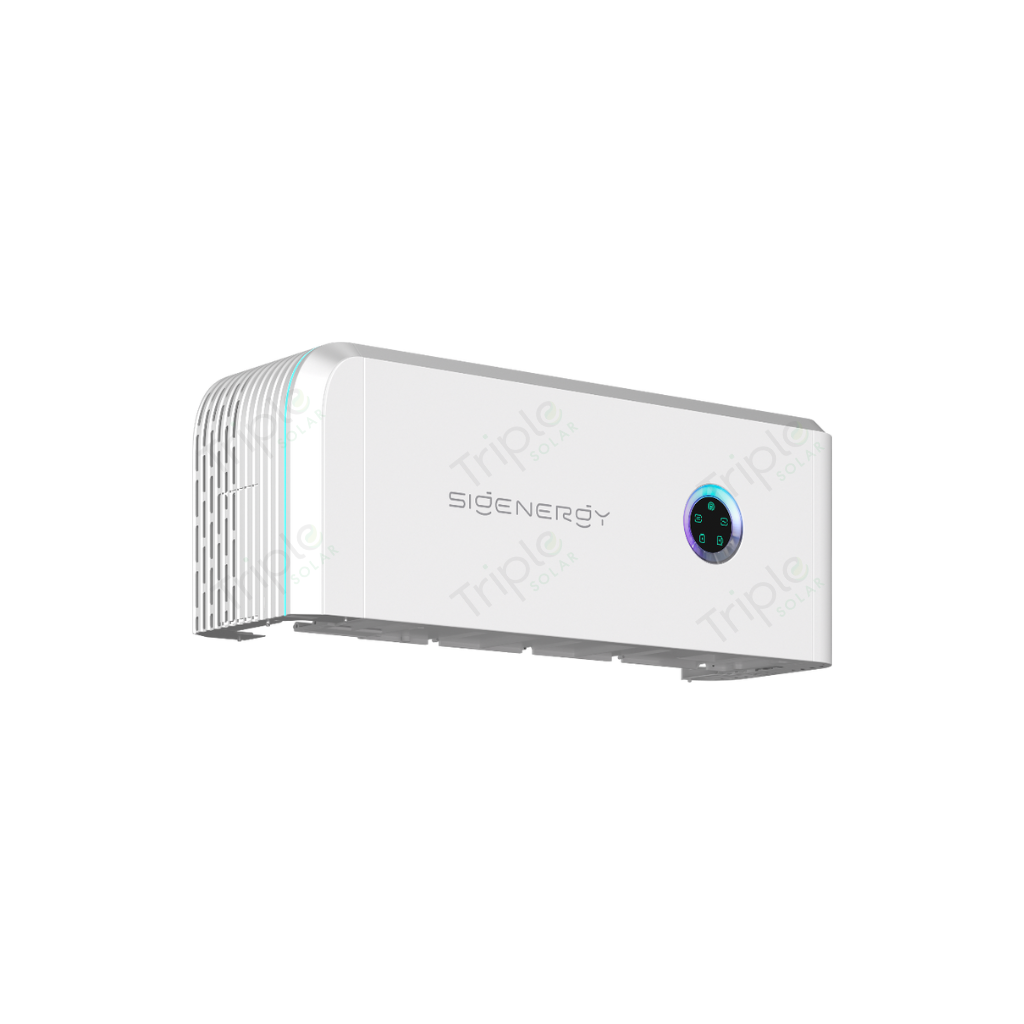

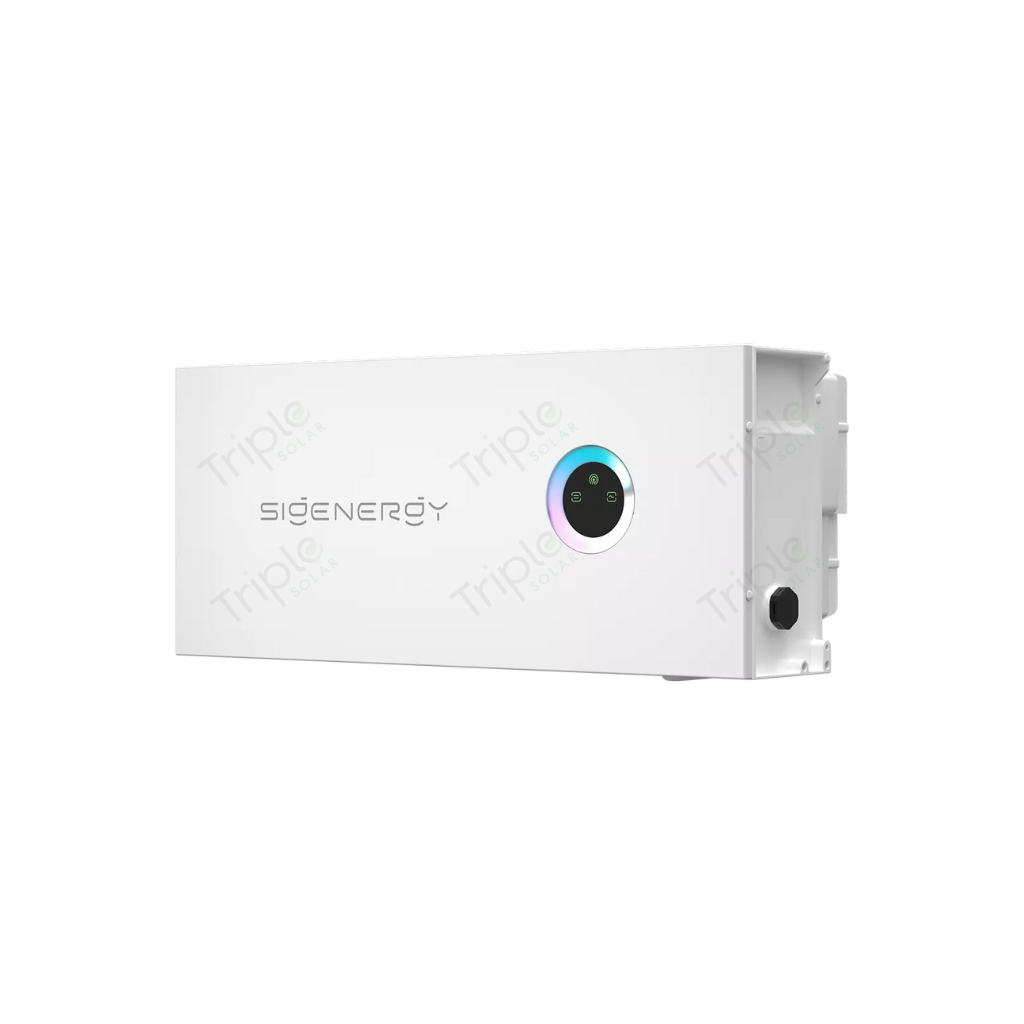

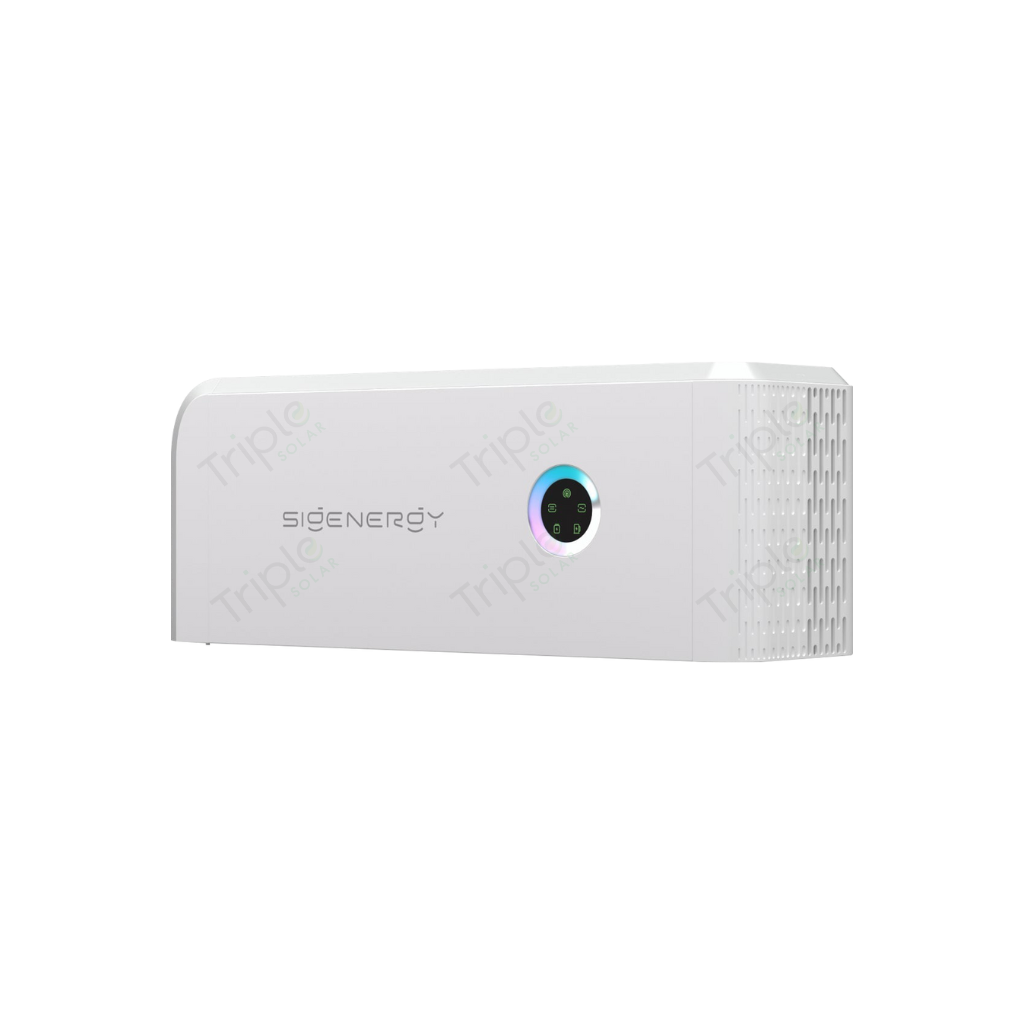

Sigen Energy Controller 12.0 kW Single Phase Hybrid
The Sigen Energy Controller EC 12.0 SP, a 12.0kW, 1Ph, Hybrid Inverter, facilitates the connection of batteries. It is compatible with SigenStor BAT 5.0kWh and 8.0kWh models. The number of batteries per inverter (controller) can range from one to six, allowing a maximum storage capacity of 48kWh per inverter. Batteries are interchangeable, offering flexibility in configuration.

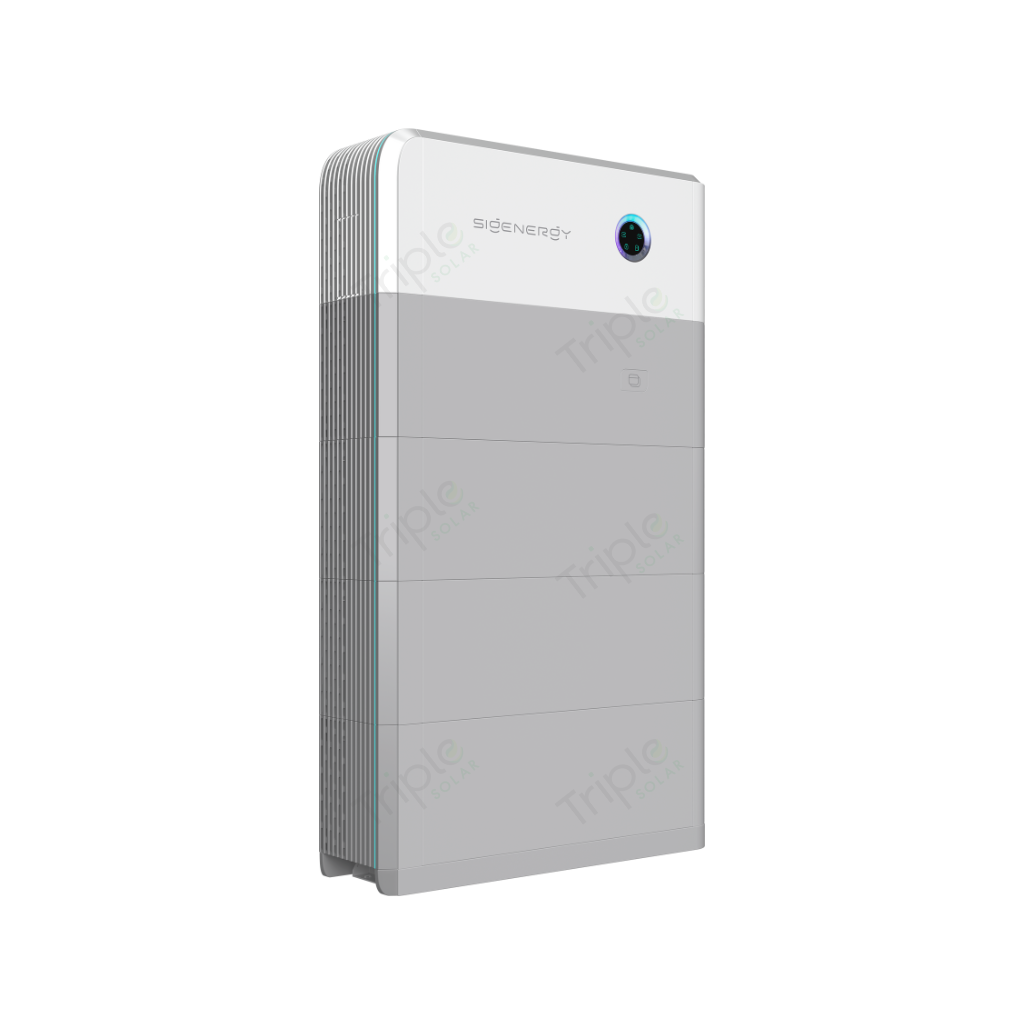

Integral to the SigenStor AI-optimized 5-in-1 Energy Storage System, the SigenStor energy controller seamlessly incorporates PV inverter, Battery Power Conversion System (PCS), EV DC Charger for electric vehicles, Battery Pack, and Energy Management System (EMS). Its adaptable product portfolio and storage expansion capabilities make it suitable for various applications, including PV+ ESS, Battery-ready, Retrofit, and Backup scenarios.
The distinctive design of the SigenStor ESS is emphasized by its stylish front eagle eye and side ambient lighting, harmoniously blending with any surroundings. The system ensures energy independence with maximum efficiency, savings, flexibility, and resilience.
Key Features:
- Dual MPP trackers for enhanced efficiency
- Integrated EMS for precise control
- Multi-source black start capability
- DC ground-fault protection for safety
- Maximum Short-circuit Current per MPPT: 20A
- DC/AC ratio up to 2.0
- IP66 protection for durability
- Natural Cooling for temperature management
- Communication options: WLAN, Ethernet, RS485, Sigen CommMod (4G/3G/2G)
- A robust 10-year warranty for peace of mind
- G99 and G100 certified for compliance
- The SigenStor EC requires at least one SigenStor BAT5 or SigenStor BAT8 to function
- Neither of the SigenStor ESS components can operate independently, except for the optional EV DC charger.
