PylonTech is a leading manufacturer of lithium battery energy storage systems and has been for over 10 years. PylonTech specialise in BMS, EMS and system integration, with a wide range of products suitable for domestic micro-grids, commercial energy storage, photovoltaic power plants and base stations.

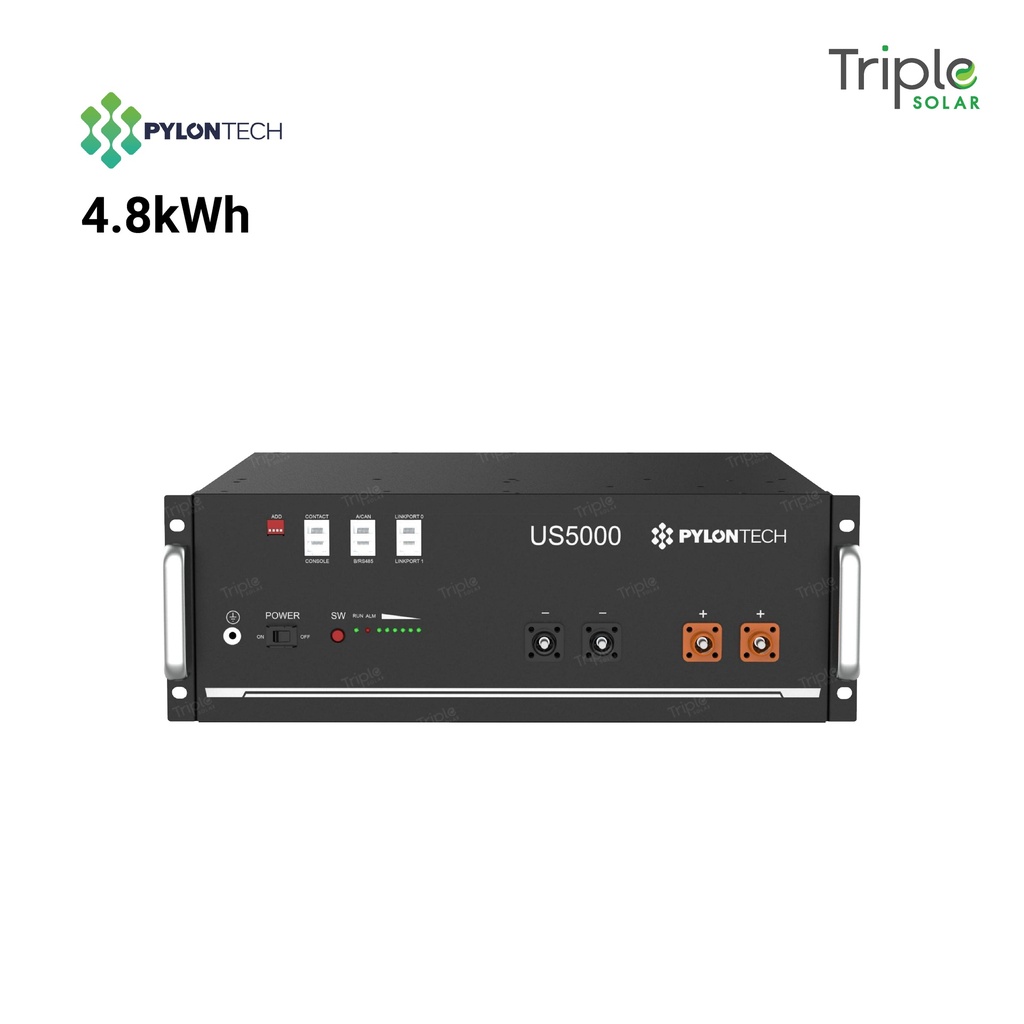

The Pylon US5000 4.8kWh LFP Battery is the latest model in the manufacturer’s highly sought after rack-mounted storage range. The US5000 has an enhanced capacity, which makes it an ideal solution for larger residential storage applications.
Like all Pylon 48V LFP batteries, the US5000 incorporates BMS technology for accurate monitoring of cells, including voltage, current and temperature.
The battery has a compact, modular design for space saving and flexibility, while multiple batteries can be connected in parallel to expand the system’s capacity.
FEATURES & BENEFITS
- Compact, fashionable design helps it blend into domestic environments
- Modular design allows use with other units for greater capacity
- Compatible with Tier 1 inverter brands
- Secured by self-developed cells, modules and BMS
- High current strike endurance
- Remote upgrade feature
TECHNICAL SPECIFICATION
- Nominal voltage: 48Vdc
- Nominal capacity: 4800Wh
- Usable capacity: 4560Wh
- Dimensions: 442 x 420 x 161mm (L x W x H)
- Weight: 39.7kg
- Communication ports: RS485, CAN
- Cycle life: >6,000
INCLUDED CABLES
- 2 x 210mm 4AWG Power Cables
- 1 x 210mm RJ45 Communication Cable
- 1 x 1000mm 6AWG Grounding Cable
