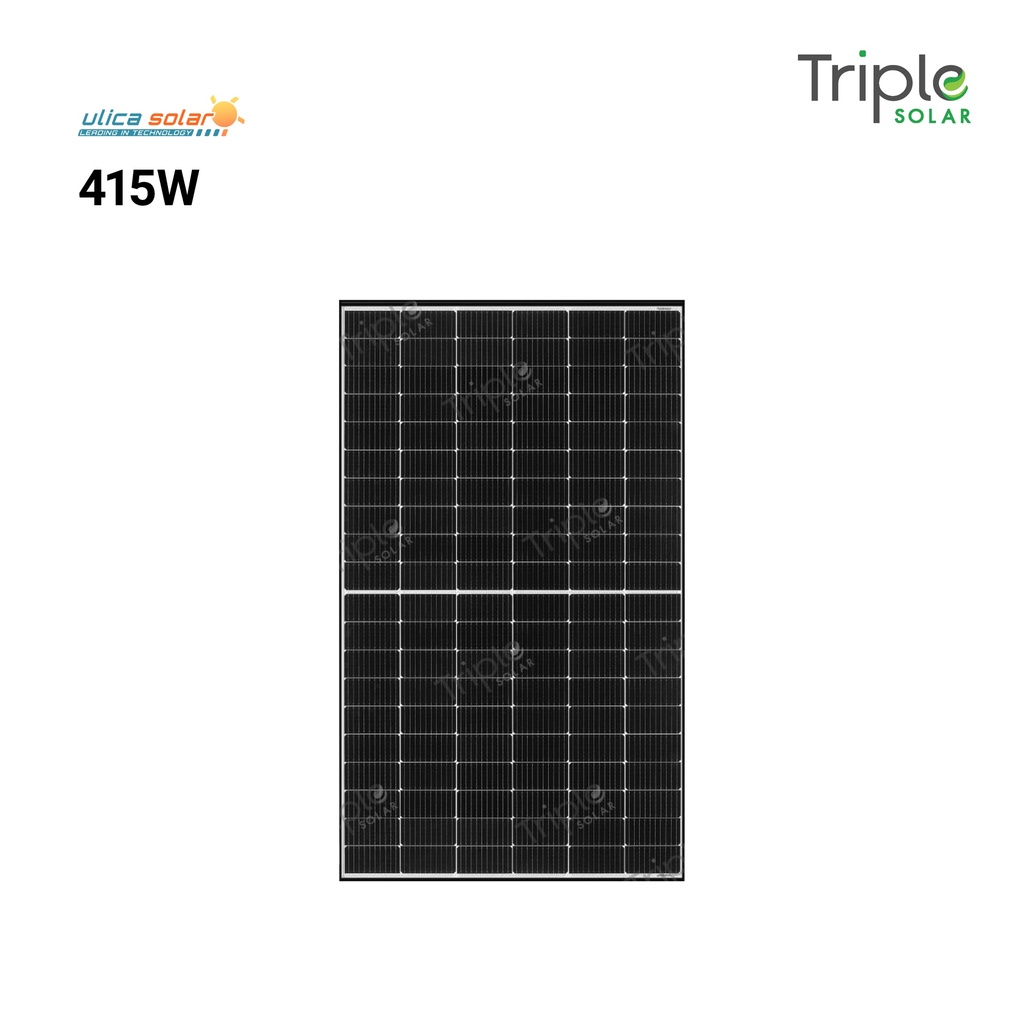

ULICA Solar 415W Monocrystalline half cut sell
ULICA SOLAR has been a leading producer of photovoltaic cells and solar energy since 2005.
The company was distinguished in the Bloomberg NEF ranking by granting Tier 1 in the first quarter of 2020, with an annual capacity of 800MW and own investment projects of 300MW.
The use of the most modern production technology of silicon solar cells ensures the production of the highest quality monocrystalline PV modules.

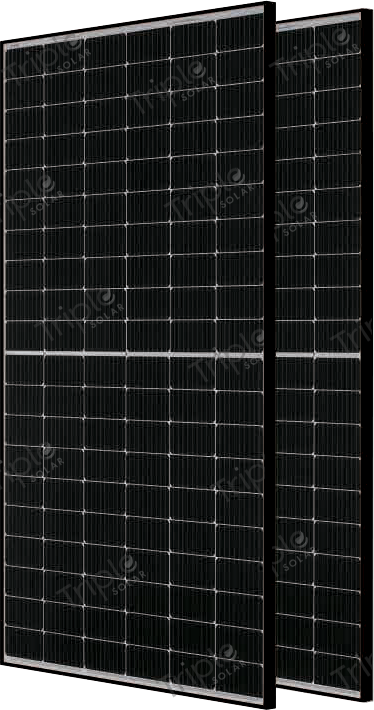

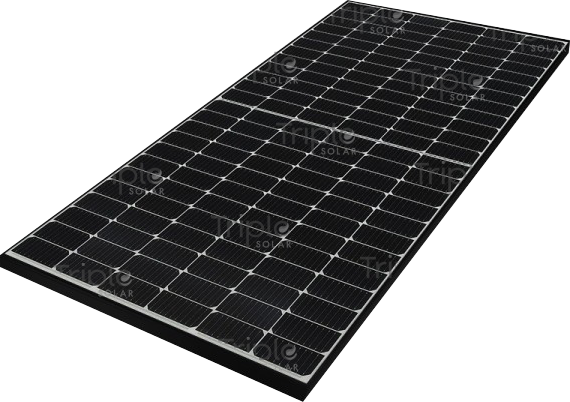

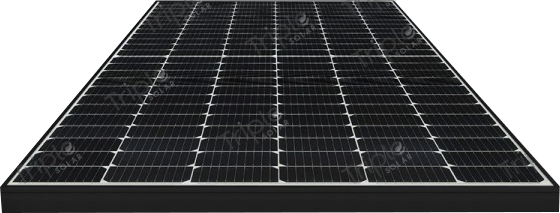

Module ULICA UL-415M-108HV exhibits the power of 415W Monocrystalline in Half-Cut technology, 9 BB Electrical parameters in standard STC test conditions:
- Maximum power Pmax – 415 W
- Open circuit voltage Voc – 37.5 V
- Short circuit current Isc – 13.93 A
- Maximum power voltage Vmpp – 31.5 V </ li>
- Maximum power current Impp – 13.17 A
- Module efficiency – 21.25%
- Mechanical parameters:
- Weight – 21.8 kg
- Frame – Black anodized aluminum profile
- Windshield – 3.2mm white tempered glass
- Cellular encapsulation – Ethylene Vinyl Acetate (EVA)

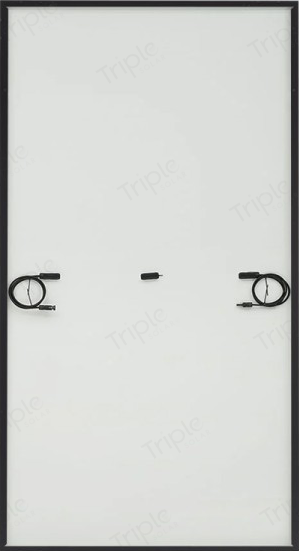

- Bottom layer – white composite foil
- Junction box – IP 68
- Cables – 400mm length
- Connectors – MC4 compatible
- Limit temperature -40 C to +85 C
- Maximum load – snow 5400 Pa, wind 2400 Pa
- Mechanical parameters:
| Brand: ULICA SOLAR |
| Cell Type: Monocrystalline Half-Cut |
| Frame Colour: Black Frame |
| Panel Power: 415 W |
| Panel Backsheet: White backsheet |
| Efficiency: 21.25 |
| Maximum Installation System Voltage (DC): 1500V |
| Product Warranty: 12 Years |
| Performance Warranty: 25 Years |
