Sigen Energy Controller (3.6kW-Single Phase)

https://triplesolar.co.uk/web/image/product.template/1770/image_1920?unique=6786502
(0 review)

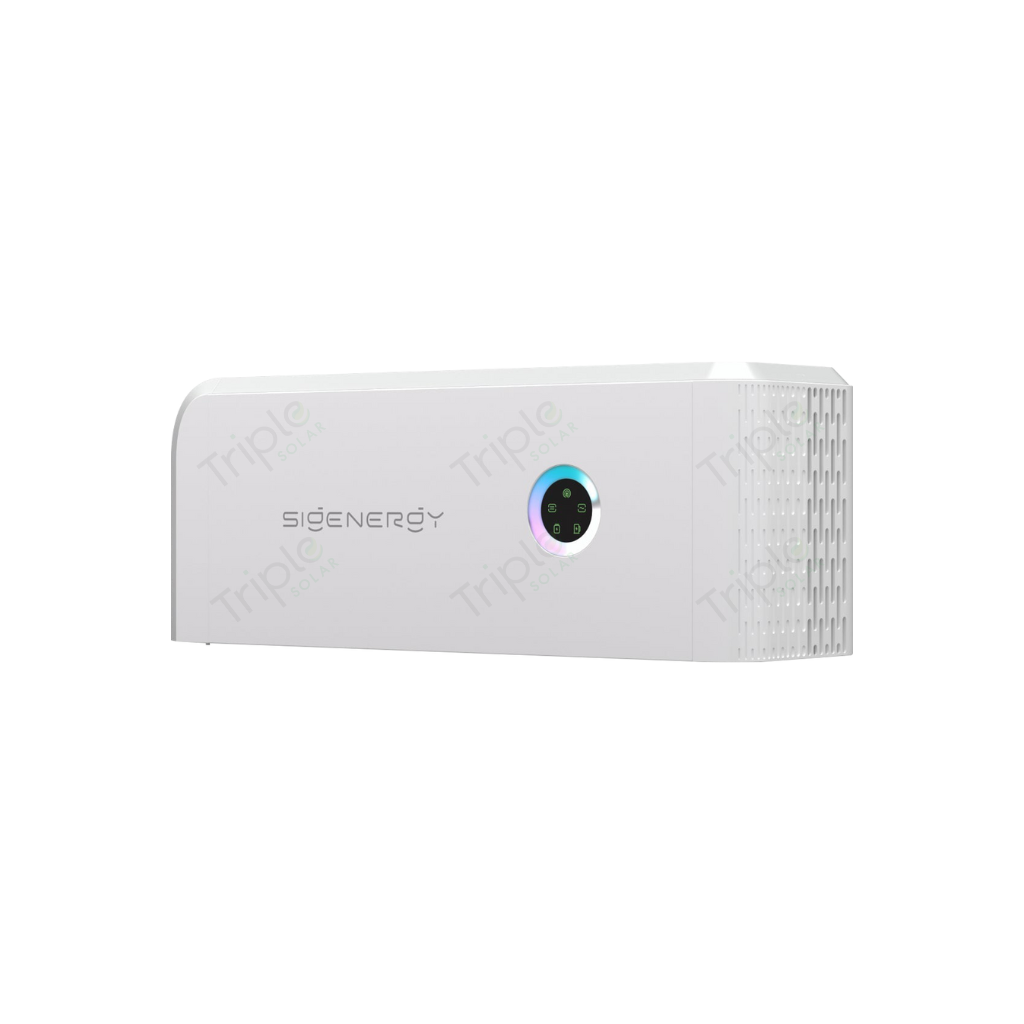

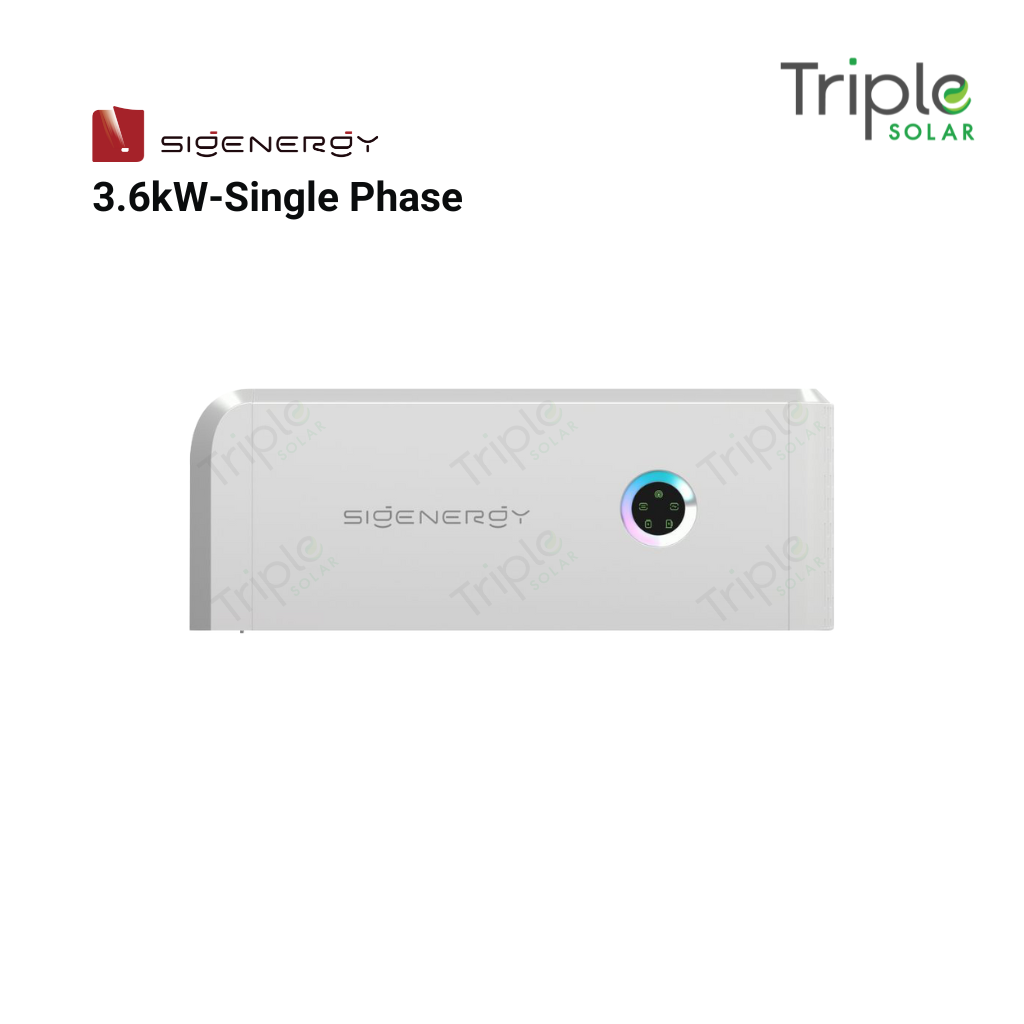

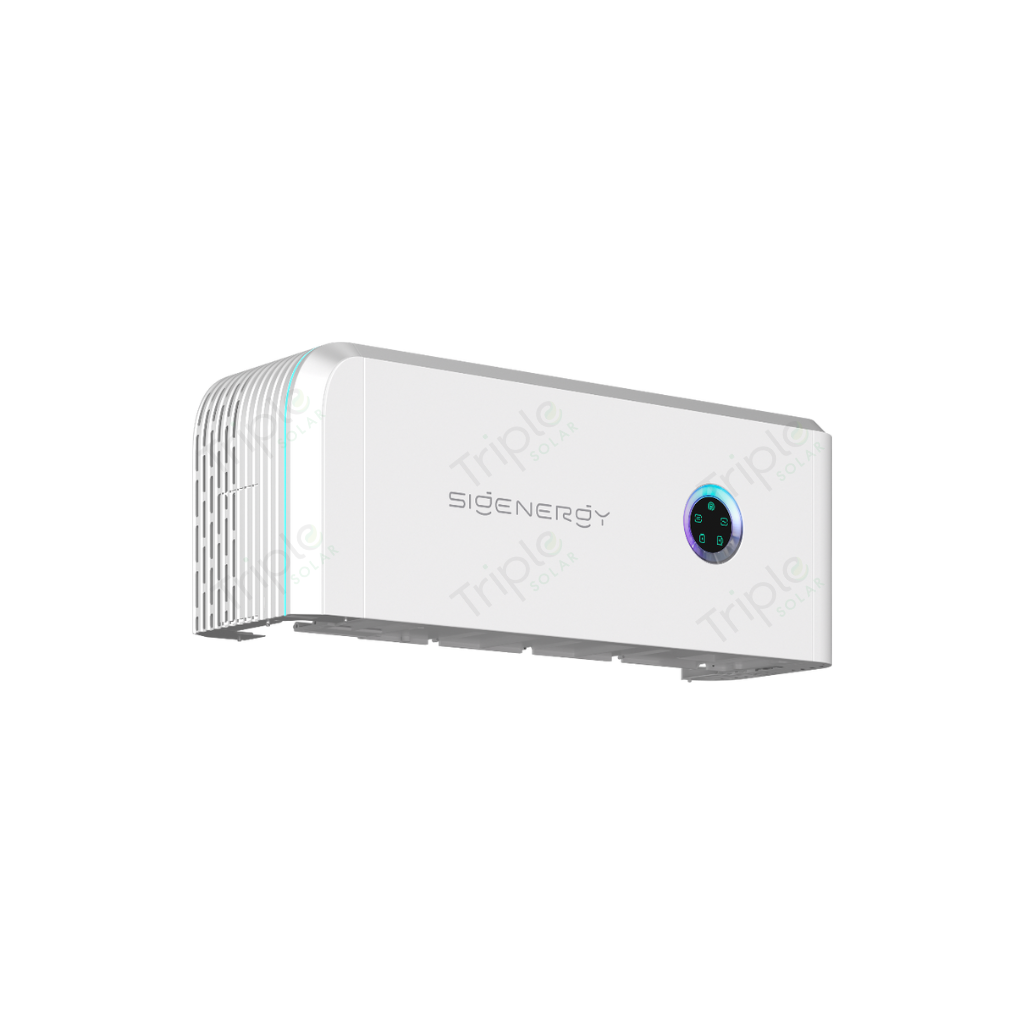

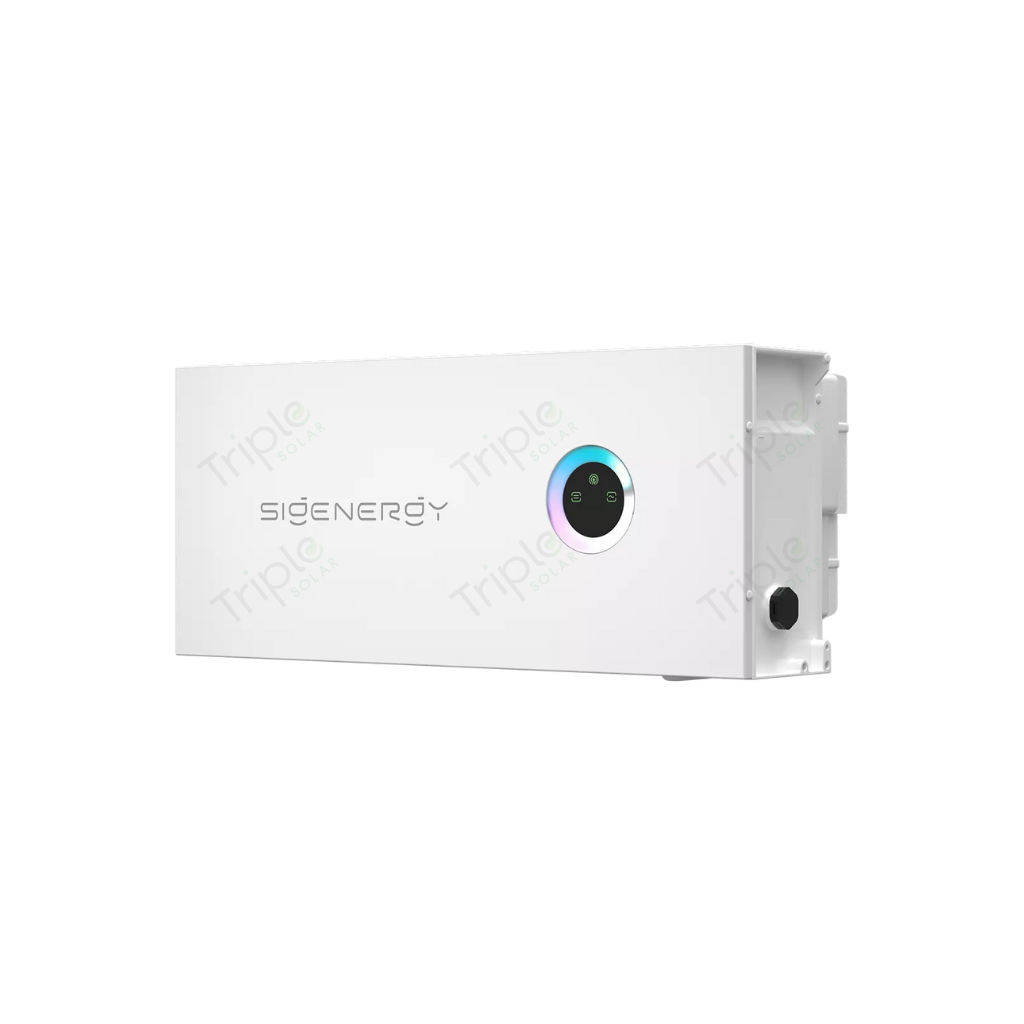

Introducing the Sigen Energy Controller EC 3.6 SP, a 3.6kW 1-phase Hybrid Inverter.

Battery Connectivity:

  • Compatible with SigenStor BAT 5.0kWh and 8.0kWh
  • Connect 1 to 6 batteries per inverter, up to 48kWh per inverter
  • Mix and match batteries
  • Up to 10 inverters per system
  • Maximum Battery Storage per System: 480kW

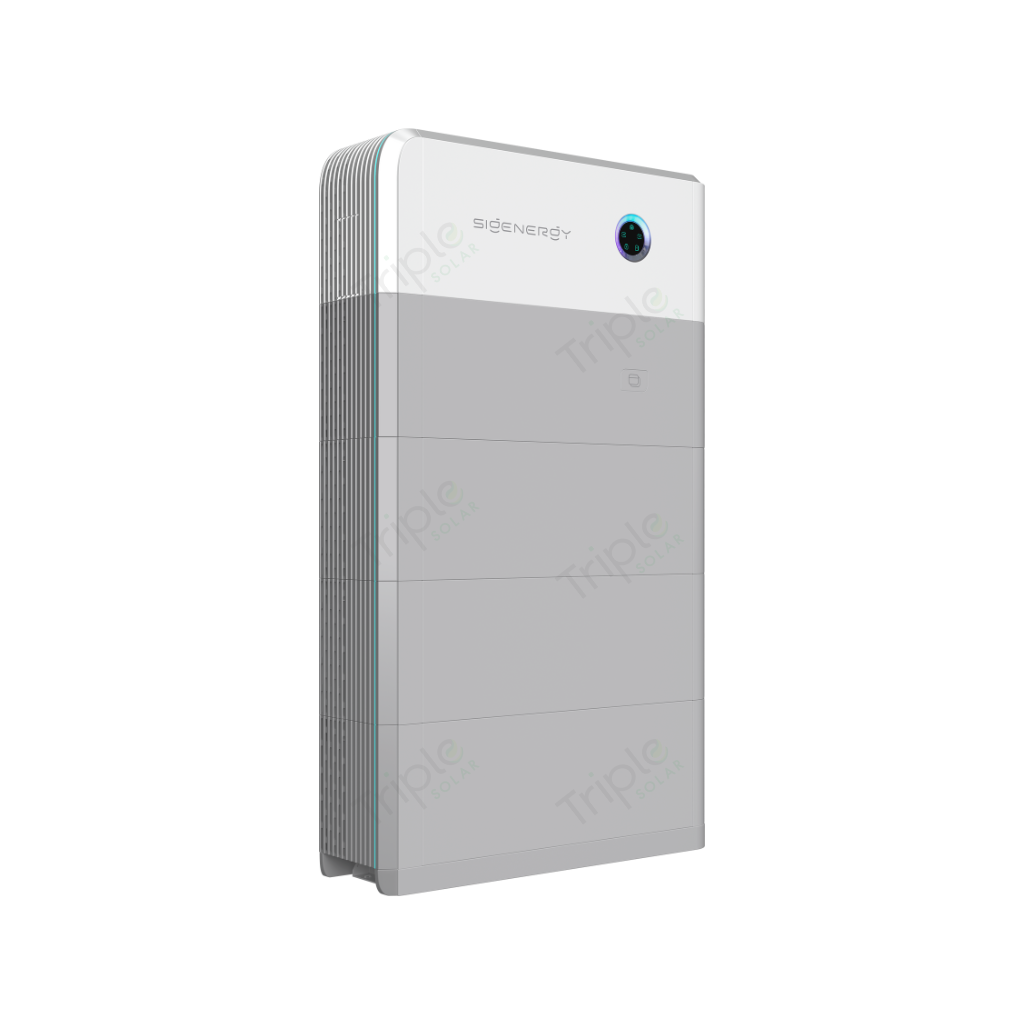

    The SigenStor energy controller is a crucial part of the SigenStor AI-optimized 5-in-1 Energy Storage System.

    Sigenergy's ESS seamlessly integrates a PV inverter, Battery Power Conversion System (PCS), EV DC Charger, Battery Pack, and Energy Management System (EMS).

    Its versatile product lineup and expandable storage make it suitable for various applications: PV+ ESS, Battery-ready, Retrofit, and Backup.

    Highlighted by a stylish design with front eagle eye and ambient side lighting, the SigenStor ESS elegantly complements any environment, providing energy independence with utmost efficiency, savings, flexibility, and resilience.

Key Features:

  • Dual MPP trackers
  • Built-in EMS for precision control
  • Multi-source black start capability
  • DC ground-fault protection
  • Maximum short-circuit Current per MPPT: 20A
  • DC/AC ratio up to 2.0
  • IP66 protection
  • Natural Cooling
  • Communication: WLAN, Ethernet, RS485, Sigen CommMod (4G/3G/2G)
  • 10-year warranty
  • G98 and G100 Certified
  • SigenStor EC requires at least one SigenStor BAT5 or SigenStor BAT8 to function
  • Components of SigenStor ESS are interdependent, excluding the optional EV DC charger.

Please Sign in or Register to see Trade Prices

2119.24 GBP £ 2,119.24 Tax Excluded

£ 2,119.24 Tax Excluded

  • Brand
  • Phases
  • Inverter type
  • Inverter Size
  • No. of MPPT
  • Max Isc per MPPT
  • Rated Output Current
  • Max Recommended PV Power
  • Start-up Voltage

This combination does not exist.

Out of Stock
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Brand: Sigenergy
Phases: 1-Phase
Inverter type: Hybrid
Inverter Size: 3.6Kw
No. of MPPT: 2
Max Isc per MPPT: 20 A
Rated Output Current: 16 A
Max Recommended PV Power: 7360 W
Start-up Voltage: 100 V
