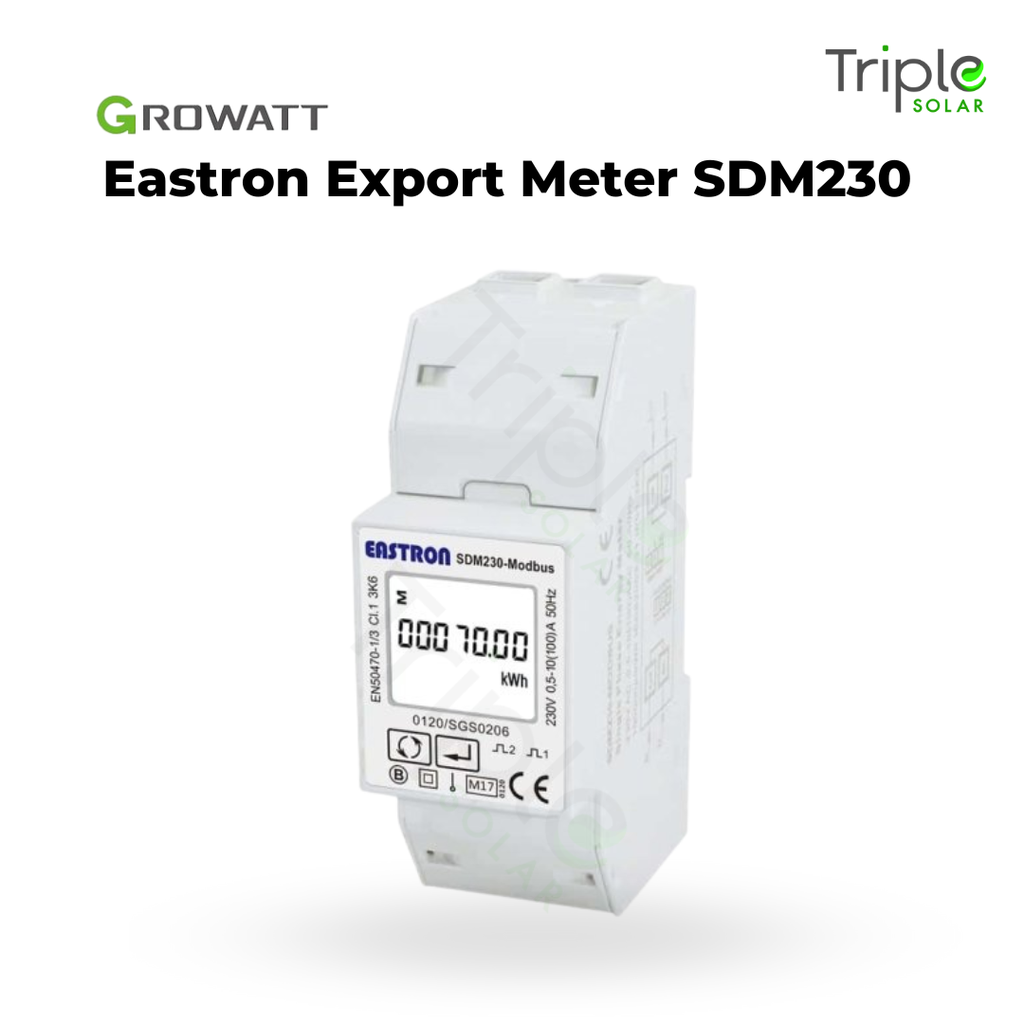

SDM230-Series Multifunction Power Meter
The SDM230 Series is a new generation modern design power monitor that will measure and display electrical power quality parameters. It has been engineered to cover most applications (Single Phase networks. There are also 4 models available depending on the output required, this ranges from a Pulsed Output (SDM230 Pulse), Modbus RTU (SDM230-Modbus), MBus (SDM230-MBus) and Multi-Tariff (SDM230-2T).
As the demand for MID certified meters has increased, we have obtained annex B and D of the EC Directive 2004/22/EC. This power meter has been tested and certified for single phase networks and import and export active energy (kWh).

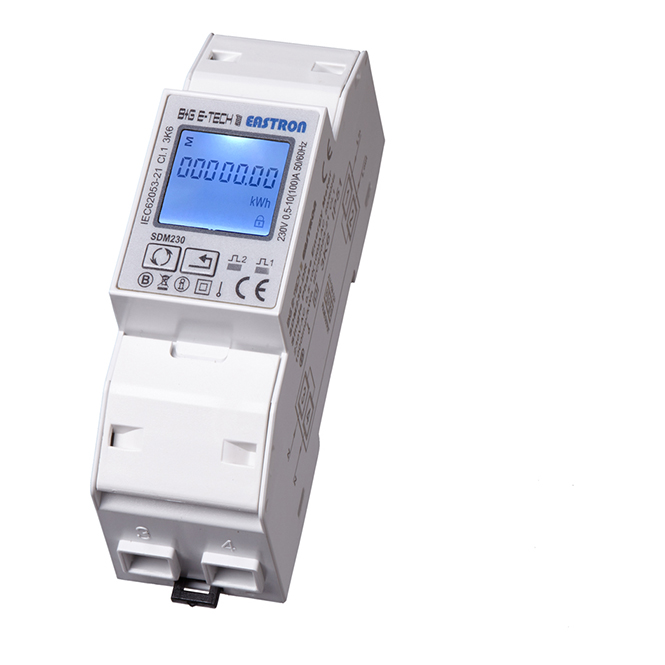

The SDM230 is produced to the highest quality and utilizes the latest microprocessor and technology. It has a blue backlit display and 16 different measuring parameters.
This meter also has the abilty to read four types of Total energy. This can be programmed via modbus and we can supply configrable software for no extra cost. The four options are Total = Import, Total = Import + Export, Total = Export - Import (net kWh) and Total = Import - Export.
Parameters
• Phase to Neutral Voltage (V)
• Phase Current (A) • Frequency (Hz)
• Power Factor (PF)
• Power Max Demand (MD kW)
• Active Power (kW)
• Reactive Power (kVAr)
• Apparent Power (kVA)
• Import Active Energy (kWh)
• Export Active Energy (kWh)
• Total Active Energy (kWh)
• Import Reactive Energy (kVArh)
• Export Reactive Energy (kVArh)
• Total Reactive Energy
(kVArh)
