The Sigen Power Sensor CT600-DH effortlessly pairs with Sigenergy devices, eliminating setup needs. An integral part of the SigenStor 5-in-1 Energy Storage System, it integrates seamlessly with a PV inverter, Battery Power Conversion System (PCS), EV DC Charger, Battery Pack, and Energy Management System (EMS).
Key Features:
- 1% high-precision power detection
- LCD real-time info display
- 100 A direct connection in single-phase grid
- AI-ready, 100 ms data refresh rate
- Grid connections: 3P3W/3P4W
- IP51 rating, DIN Rail 35mm installation
- RS485 output for Modbus RTU
- Compact dimensions: 72/94.5/65mm
CT Accessory:
- Includes 3 CTs
- CT inner diameter: 36mm
- Max operating current: 600A

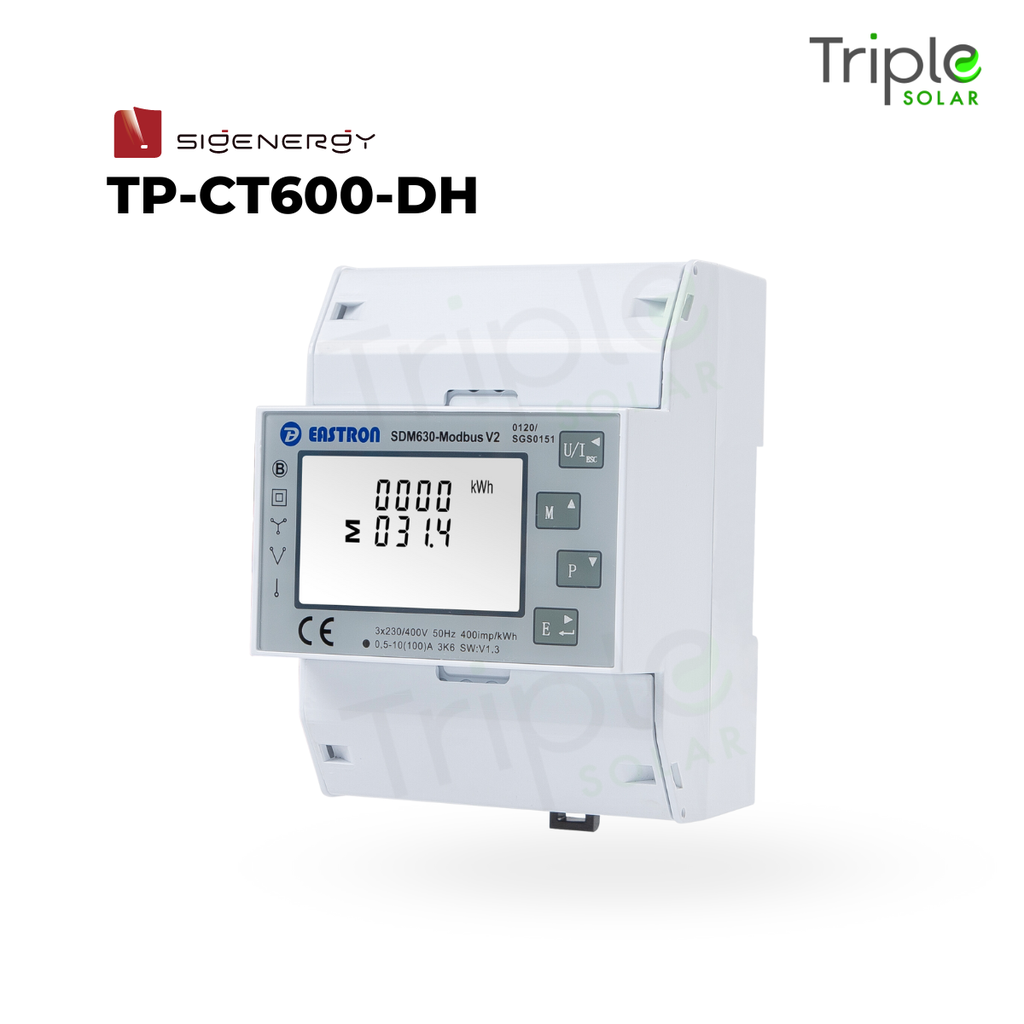

Sigenergy CT Meter (Sigen Power Sensor TP-CT600-DH)
Sigenergy CT Meter (Sigen Power Sensor TP-CT600-DH)
| Brand: Sigenergy |
| Maximum Input voltage: 276 V |
| Grid Connection Type: 3P3W/3P4W |
| Voltage Measurement Accuracy: 0.5% |
| Current Measurement Accuracy: 0.5% |
| Power Measurement Accuracy: 1% |
| Frequency Measurement Accuracy: 0.2% |
| Communication Interface: RS485 |
| No of CT: 3 |
| Maximum Operating current of CT: 600A |
