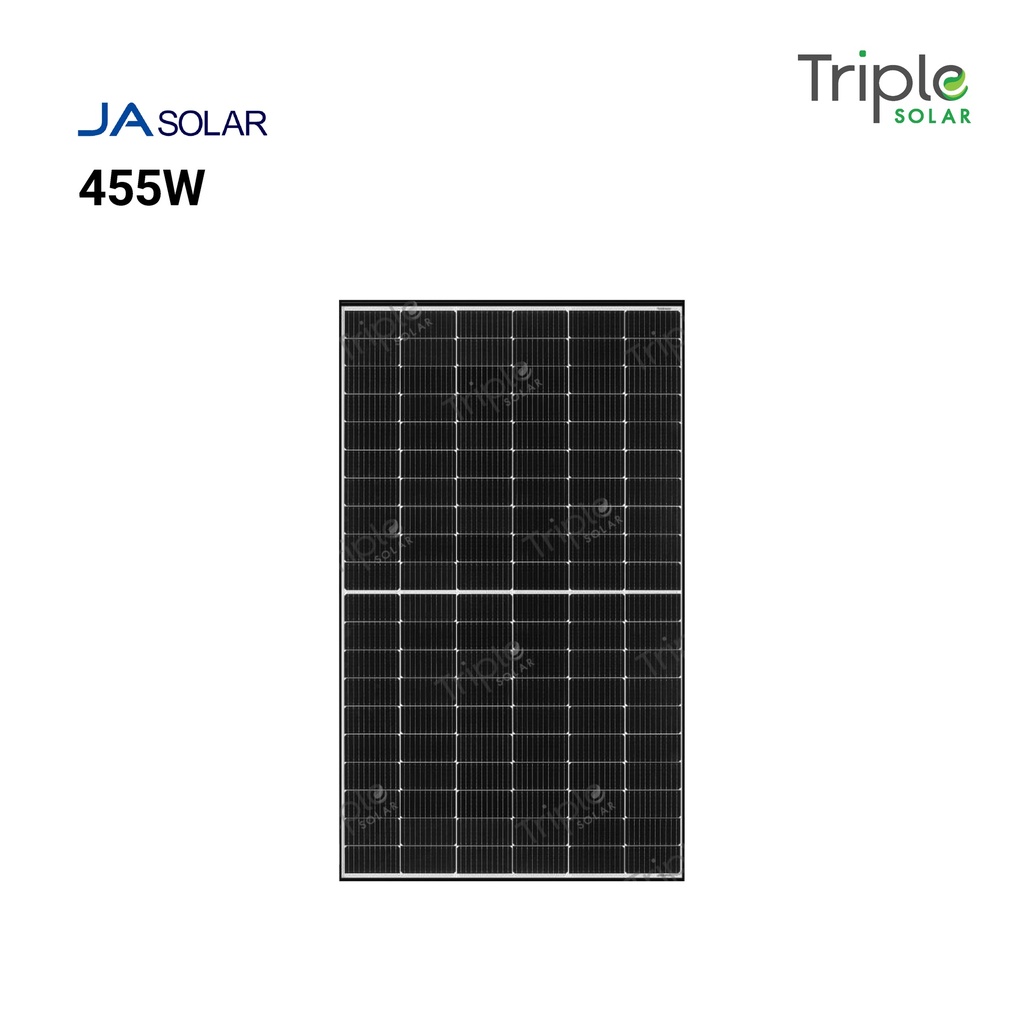

JA 455W White backsheet solar panel
JA Solar 455W Solar Panel – Monocrystalline Panel – JAM78S10 435-455
JA Solar has been leading the market in high-performance solar panels since 2005. Their panels are used in huge numbers in residential, commercial, and municipal power generation projects all over the world. This is a large single panel, so it’s perfect for higher capacity electrical systems in vans, boats, and off-grid houses. The panel is pre-wired with MC4 connectors, and the sturdy aluminium frame is easily compatible with a variety of mounting systems.
High tech and high performance
The JA Solar 455W solar panel is the culmination of intense R&D from a manufacturer with years of expertise behind them. Assembled with high efficiency PERC cells, the half cell configuration of the modules in the panel offers the following advantages:
- higher power output
- better temperature dependent performance
- reduced shading effect on energy generation
- lower risk of hot spots
- enhanced tolerance for mechanical loading
The cells are monocrystalline, i.e. they have been cut from a single sheet of silicon. This uniformity greatly contributes to their superior efficiency.
PERC Cells
PERC technology is new on the market; it only emerged in 2018. The JA Solar 455W solar panel incorporates this cutting-edge tech. Thus, you won’t find a panel construction with a higher solar power conversion efficiency on the market today. An extra layer at the back of the cell means PERC technology improves light capture, optimises electron capture, and reduces heat generation.
High open circuit voltage for charging on cloudy days
As detailed in our guide on solar panel capacity, open circuit voltage (Voc) is an important and oft-overlooked factor. Most AGM or lithium leisure batteries require a Voc of around 14V. Voc drops by the same percentage as solar power generation performance. Thus, if your panels are only working at 50% of their capacity (on a cloudy day, for example), this correspondingly cuts your Voc by 50%. This JA Solar 450w solar panel has a high Voc of 54V, so your batteries will charge effectively even at a lower performance threshold. Winter or summer, rain or shine, it’ll be one less thing to think about.
Solar panel mounting options
Depending on your application, the Victron 40W solar panels can be mounted in a number of ways. If you have a roof rack you can mount directly to this. Otherwise, you can use mounting brackets to attach your solar panels to the roof of your campervan.
Looking for a different size solar panel?
View our full range of solar panels, from 20W-455W, from brands such as Victron, Solar Technology and JA Solar.
Products that give back
We are members of 1% for the Planet. This means that for every product purchased from Climbingvan, we will give 1% of the total cost to The Honnold Foundation, to provide solar power to underprivileged communities. If you want your electrical system to have more of a positive impact, purchasing your components from us at Climbingvan will mean you can give back as well as powering your off-grid system.
| Cell Type: PERC Mono-Crystalline Half-Cell |
| Frame Colour: Black Frame |
| Panel Power: 455 W |
| Panel Backsheet: White backsheet |
| Efficiency: 20.5% |
| Maximum Installation System Voltage (DC): 1500V |
| Product Warranty: 12 Years |
| Performance Warranty: 25 Years |
