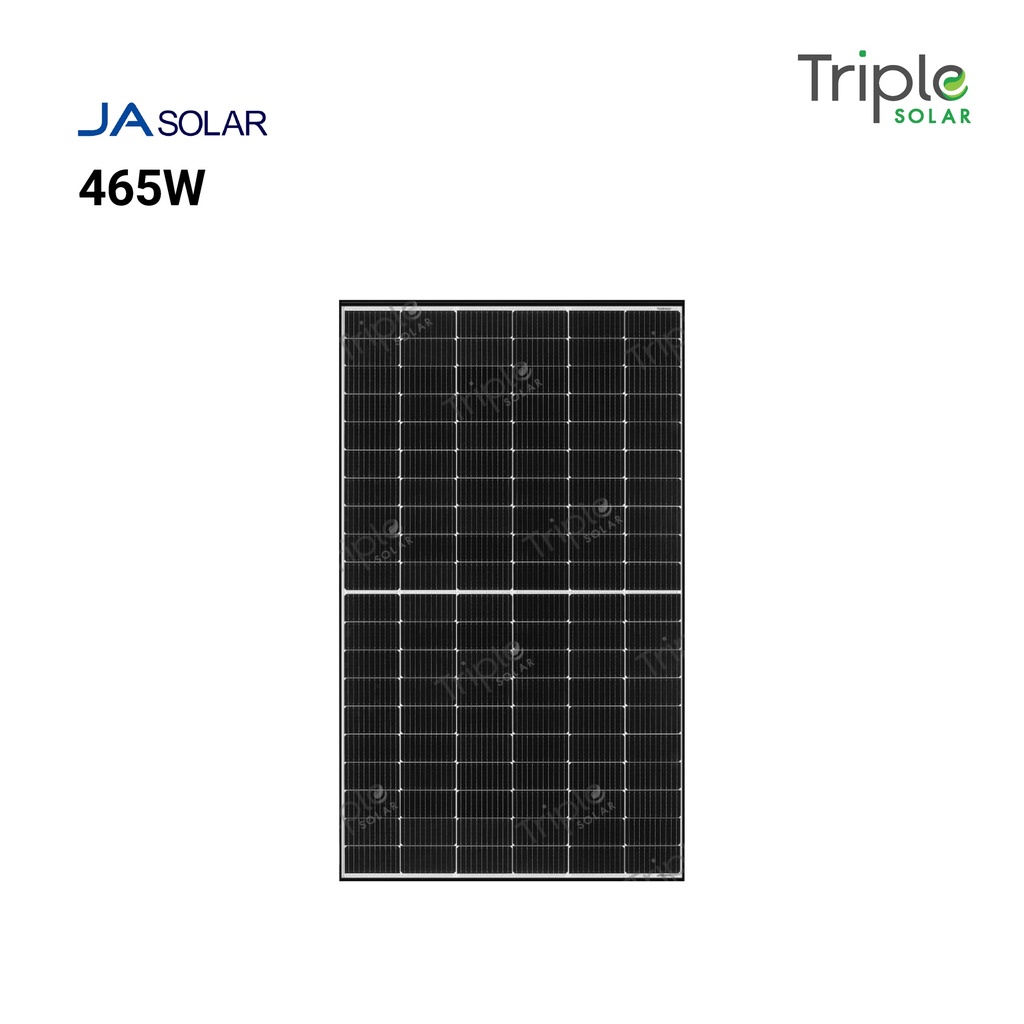

JA 465W White backsheet solar panel
JA Solar 465W Mono MBB Percium Half-Cell Silver Frame MC4
- High output power
- Less shading effect
- Lower temperature coefficient
- Better mechanical loading tolerance

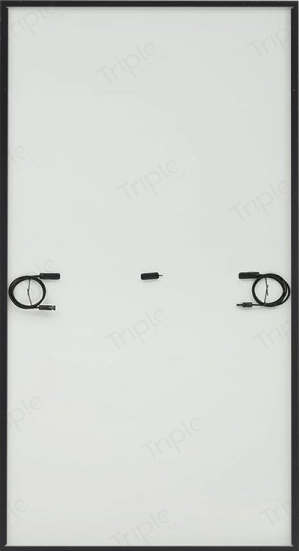

Please note this module has Silver Frame and White Backsheet.
Comes supplied with MC4 connectors and 1200mm long cables
This module comes with a 12 year product warranty and a 25 year performance warranty.
Weight: 24.5 kg
Rated Power: 465 W
MCS Reference: BABT 8515-207-R27
Length: 2,112 mm
Width: 1,052 mm
Depth: 35 mm
VMPP: 42.43 V
IMPP: 10.96 A
Isc: 11.49 A
Voc: 50.15 V
Temp. Coefficient (Mpp): -0.35 %
Clamp position on panel: Long and short side
Connector Type: MC4
Efficiency: 20.9 %
Pallet Size: Oversized
| Cell Type: PERC Mono-Crystalline Half-Cell |
| Frame Colour: Black Frame |
| Panel Power: 465 W |
| Panel Backsheet: White backsheet |
| Efficiency: 20.9% |
| Maximum Installation System Voltage (DC): 1500V |
| Product Warranty: 12 Years |
| Performance Warranty: 25 Years |
