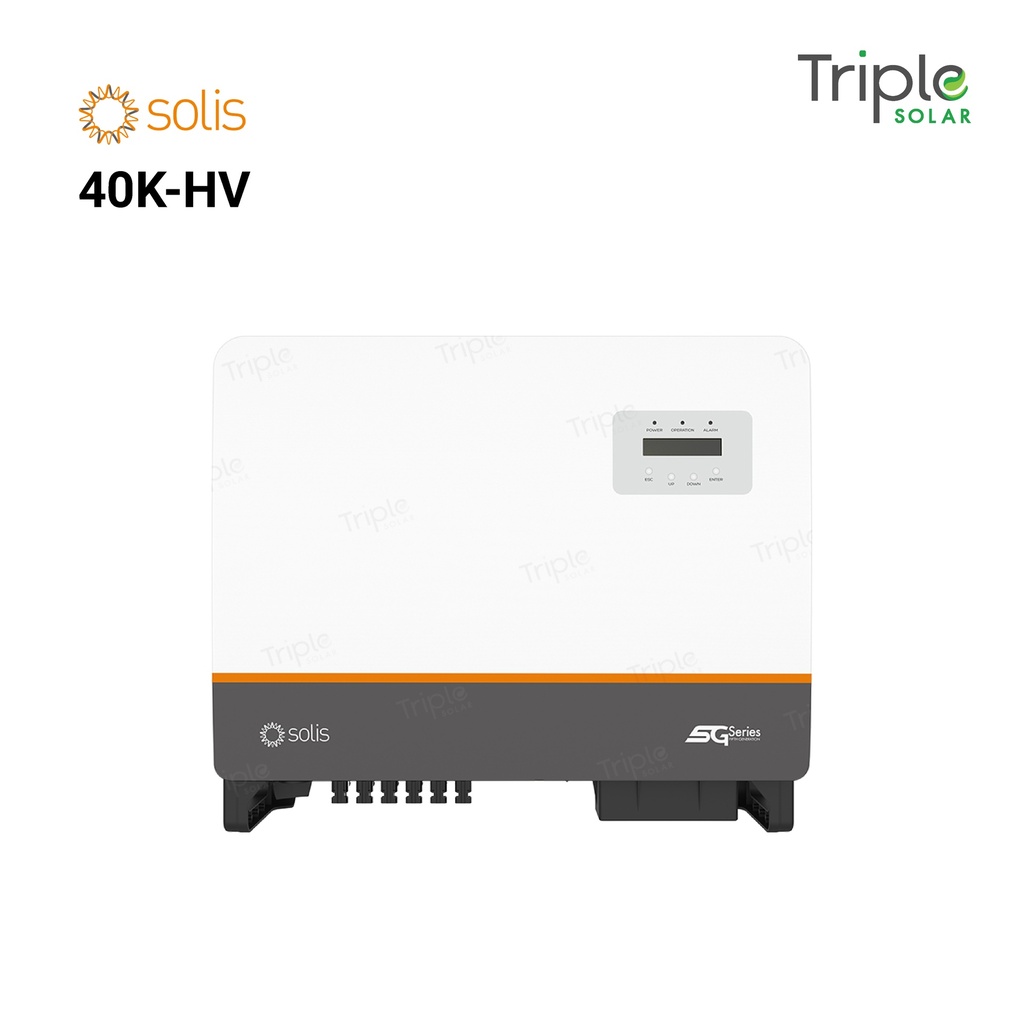

Solis String (40K-HV-5G)
Features:
▶ 4 MPPT design with precise MPPT algorithm,
effectively reducing string mismatch
▶ 8 strings intelligent monitoring, Smart I-V Curve Diagnosis supported
▶ 30% DC overload,13A input for each PV string
▶ Over 98.8% Max. efficiency
▶ 200V-1000V MPPT voltage range-ultra low startup
▶ Fuse free design to avoid fire hazard
▶ Type II surge arrester for both DC and AC
▶ Natural convection, Fan-less design, longer lifespan
▶ RS485/ Wi-Fi/ GPRS interface integration,
remote upgrade supported
Brand: Solis |
Phases: 3-Phase |
Inverter type: Multi MPPT Strings |
Inverter Size: 40Kw |
No. of MPPT: 4 |
Max Isc per MPPT: 40 A |
Rated Output Current: 53 A |
Max Recommended PV Power: 52000 W |
Start-up Voltage: 180 V |
