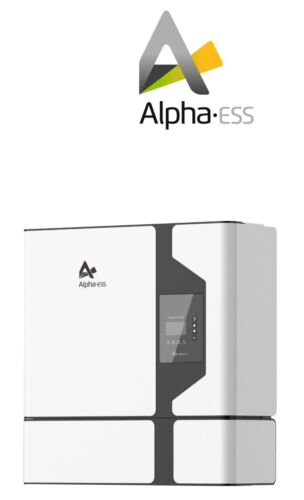

SMILE5-INVERTER
Established in 2012, Alpha ESS specializes in advanced battery storage products and intelligent energy management solutions for both residential and commercial applications.
Offering a fast response and uninterruptible power supply, the Smile5-INV-FFR 5kW single-phase hybrid inverter features an intelligent modular design and 24/7 monitoring both online and via the AlphaCloud app.
The new Smile5-INV-FFR is now capable of fast frequency response (FFR) for grid services. It can be connected with either the SMILE5-BAT 5.7kWh battery or the SMILE-BAT-10.1P 10.1kWh Battery.
Expandable up to 34.2kWh with the SMILE5-BAT 5.7kWh Battery
Key Features:
- Suitable for use both Indoors & Outdoors
- Supports up to 6.5kW PV Input
- Supports AC/DC Coupling
- Capable of FFR for Grid Services
- In-built DC Switch for PV Input
- Supports On-grid and Off-grid Operation
- All-in-one Modular battery
- Can Also be used as 3.68kW With Export Limitation (G100)
- Intelligent control via AlphaCloud
- Built-in WiFi Dongle and LAN for Ethernet Connection
| Phases: 1-Phase |
| Inverter type: Hybrid |
| Inverter Size: 5.0Kw |
| No. of MPPT: 2 |
| Max Isc per MPPT: 15 A |
| Rated Output Current: 21.7 A |
| Max Recommended PV Power: 6600 W |
