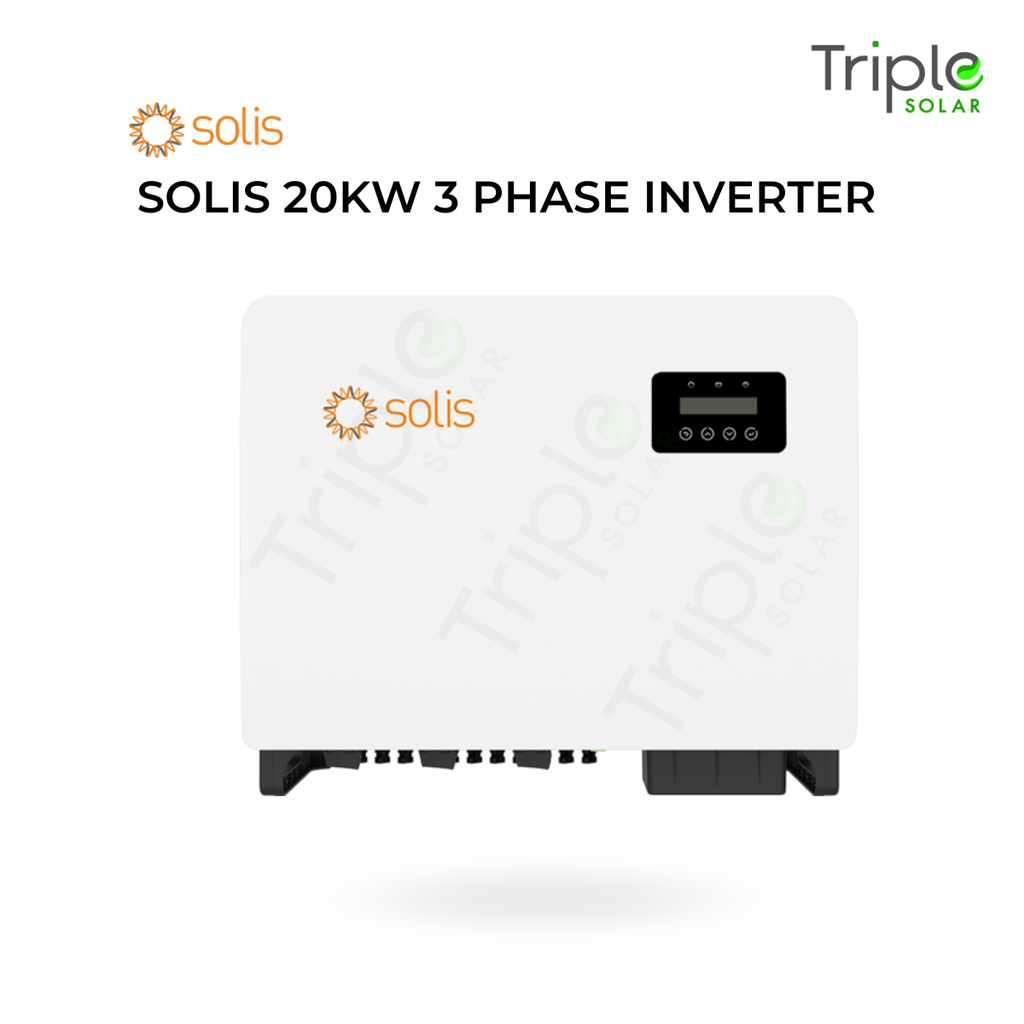

Solis S5 20kW Three-Phase String Inverter
Solis S5 20kW Three-Phase String Inverter
Ideal for residential and small commercial and industrial installations, the Solis S5 is designed to be compact and lightweight, making it a breeze to install. Its maximum current per string is up to 16A, which makes it compatible with high-power solar panels.
Its two MPP trackers each support four strings, while the arc fault protection function limits the risk of fire.
Key features:
- Compact, lightweight grid-tied inverter with two MPPTs, each with four strings
- String current up to 16A
- Easy-to-use LCD display
- Wide voltage range with a low start-up voltage
- Supports export power control
- Arc fault protection to reduce fire risk
- Intelligent redundant fan cooling
- Ingress protection: IP66
- Maximum efficiency: 98.7%
| Phases: 3-Phase |
| Inverter type: Dual MPPT Strings |
| Inverter Size: 20Kw |
| No. of MPPT: 2 |
| Max Isc per MPPT: 40 A |
| Rated Output Current: 27 A |
| Max Recommended PV Power: 30000 W |
| Start-up Voltage: 180 V |
