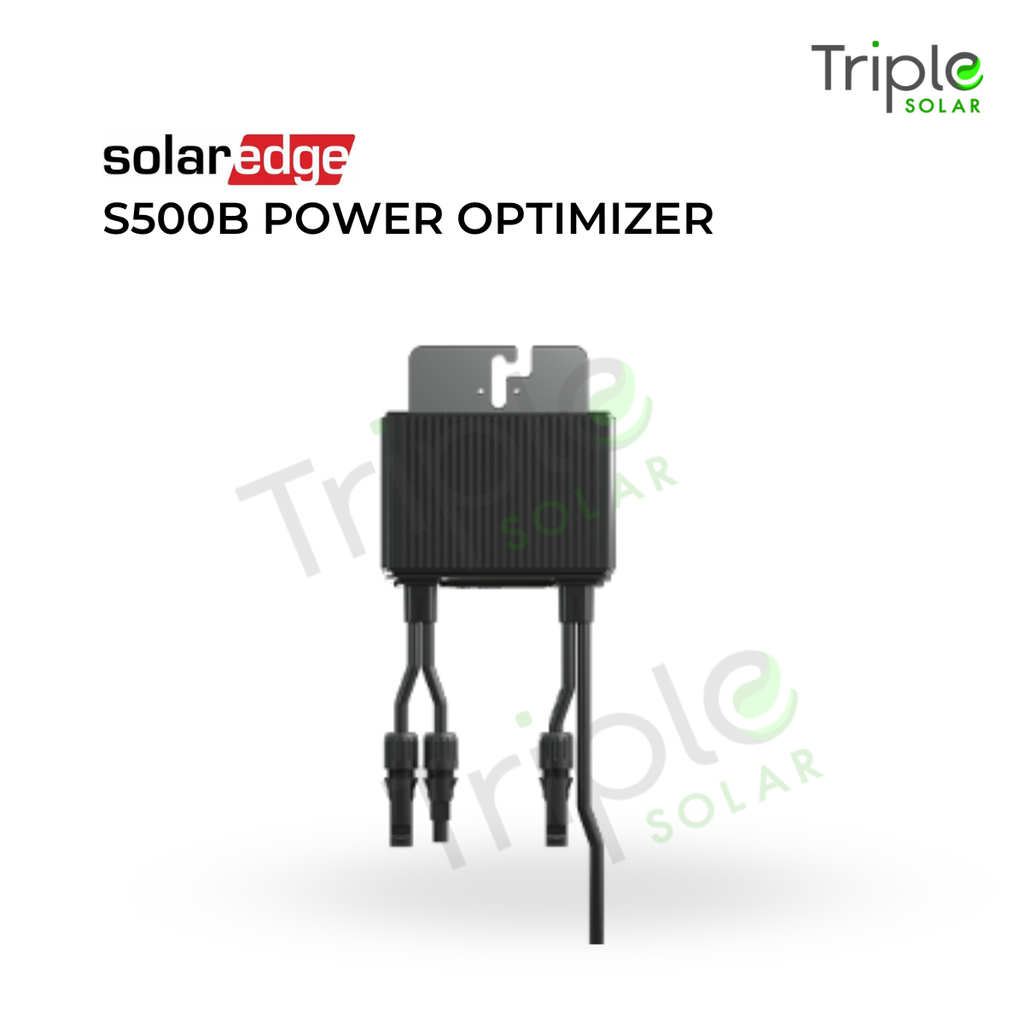

S500B Power Optimizer Solar Edge
The S500B Power Optimiser FROM Solar Edge is suitable for use with high power modules with an output of up to 500W.
Optimisers allow for uneven strings, longer strings, a mix of panel types and orientations on the same string, as well as reducing the impact of partial shading on the array.
The Solar Edge S-series beneficial features include:
- Exceptional Efficiency: Improve Module generation by mitigating against mismatch with an inbuilt MPPT and possess an efficiency of 99.5%.
- Advanced safety built-in:
- Electric Arc Protection - An unattended electric arc could develop into a fire. SolarEdge Sense Connect has the capability to identify abnormal thermal events in the connector, preventing electric arcs from forming.
- Safe to the Touch DC Voltage - Solar Edge's SafeDC technology reduces PV system DC voltage within 5 minutes to touch-safe levels. By using the Rapid Shutdown feature, conductors can be discharged to safe-to-touch levels within 30 seconds.
- Real-time Module-level Monitoring - SolarEdge provides a monitoring and alerts system, giving installers automatic and pinpointed notifications on issues to help prevent potential safety risks, while enabling superior asset protection and rapid, remote troubleshooting.
| Brand: Solaredge |
| Max Isc per MPPT: 15 A |
| Maximum Input voltage: 125V |
| IP rating: IP68 |
| Maximum Output Voltage: 80V |
| Rated input Power: 500W |
| Maximum MPPT Voltage: 105V |
| Maximum output current: 15A |
