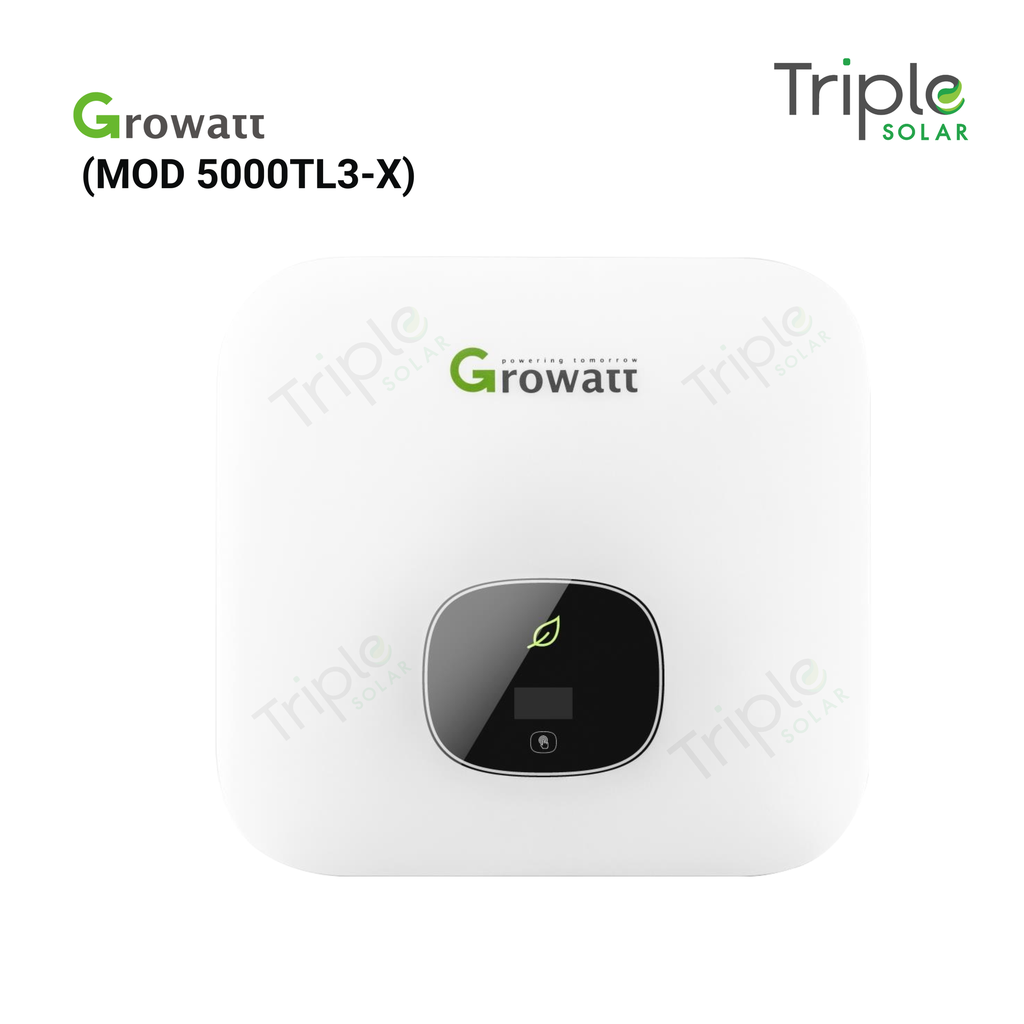

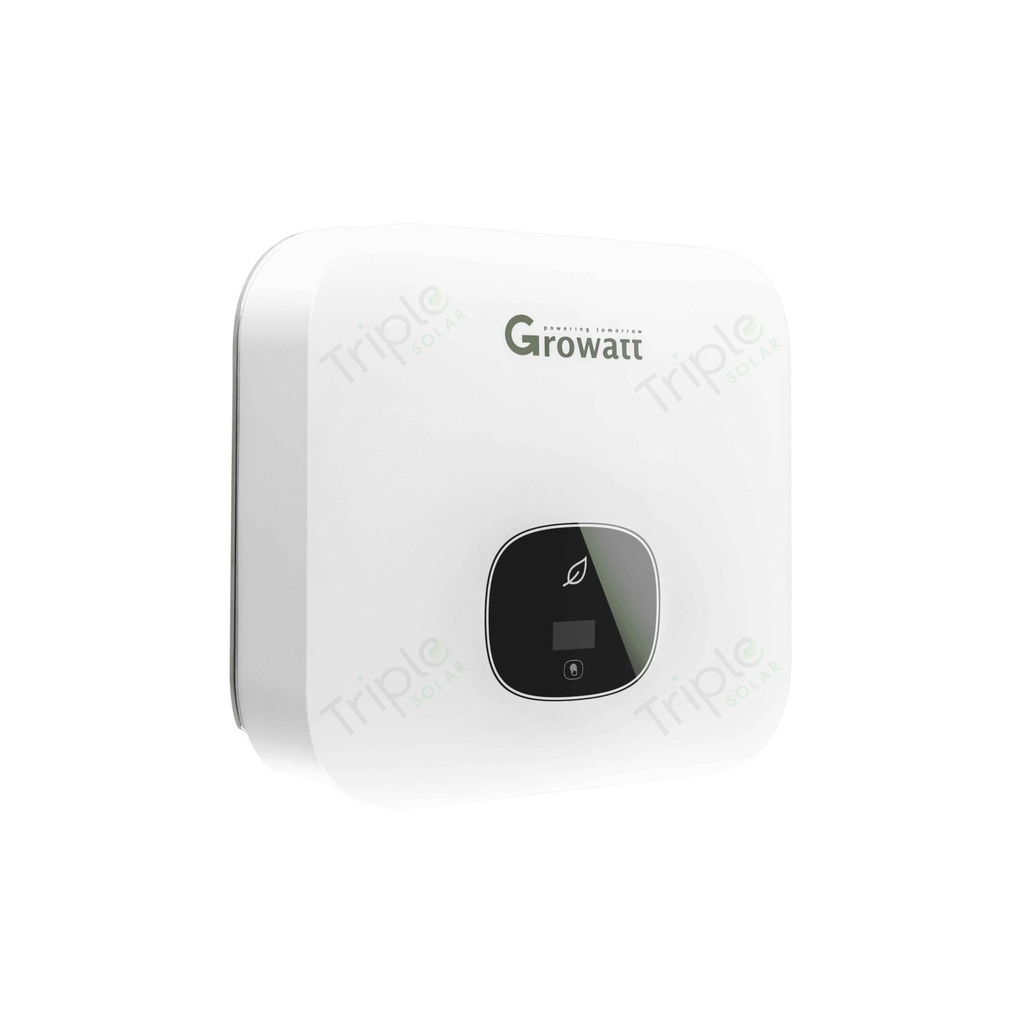

Growatt String 5Kw 3 phase dual MPPT Strings Inverter
The Growatt MOD 5000TL3-X is a three-phase solar inverter designed for residential and small industrial applications. It features dual MPPT trackers and can handle a maximum recommended PV power of 7500W. The inverter has a maximum DC voltage of 1100V, a start voltage of 160V, and an MPP voltage range of 140V-1000V. Its AC nominal power is 5000W with a maximum AC apparent power of 5500VA. The MOD 5000TL3-X has a maximum efficiency of 98.3% and supports adjustable power factor from 0.8 leading to 0.8 lagging. It includes advanced features such as Type II surge protection on both AC and DC sides, optional AFCI function, and IP66 protection for outdoor installation. The inverter has a compact design, measuring 425x387x147mm and weighing 12.5kg. It offers various communication interfaces including USB, RS485, WiFi, and GPRS, and comes with a 10-year warranty
| Brand: Growatt |
| Phases: 3-Phase |
| Inverter type: Dual MPPT Strings |
| Inverter Size: 5.0Kw |
| No. of MPPT: 2 |
| Max Isc per MPPT: 16 A |
| Rated Output Current: 8.3 A |
| Max Recommended PV Power: 7500 W |
| Start-up Voltage: 200 V |
