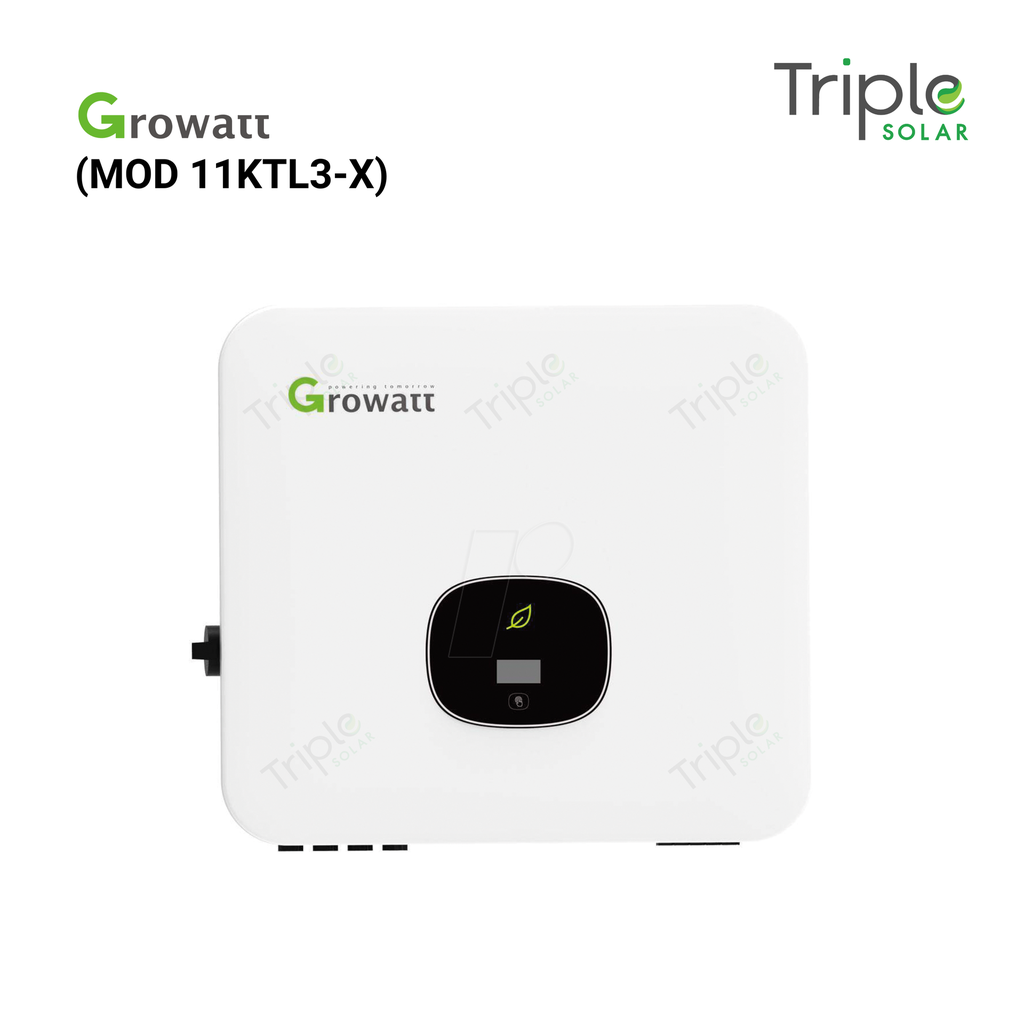

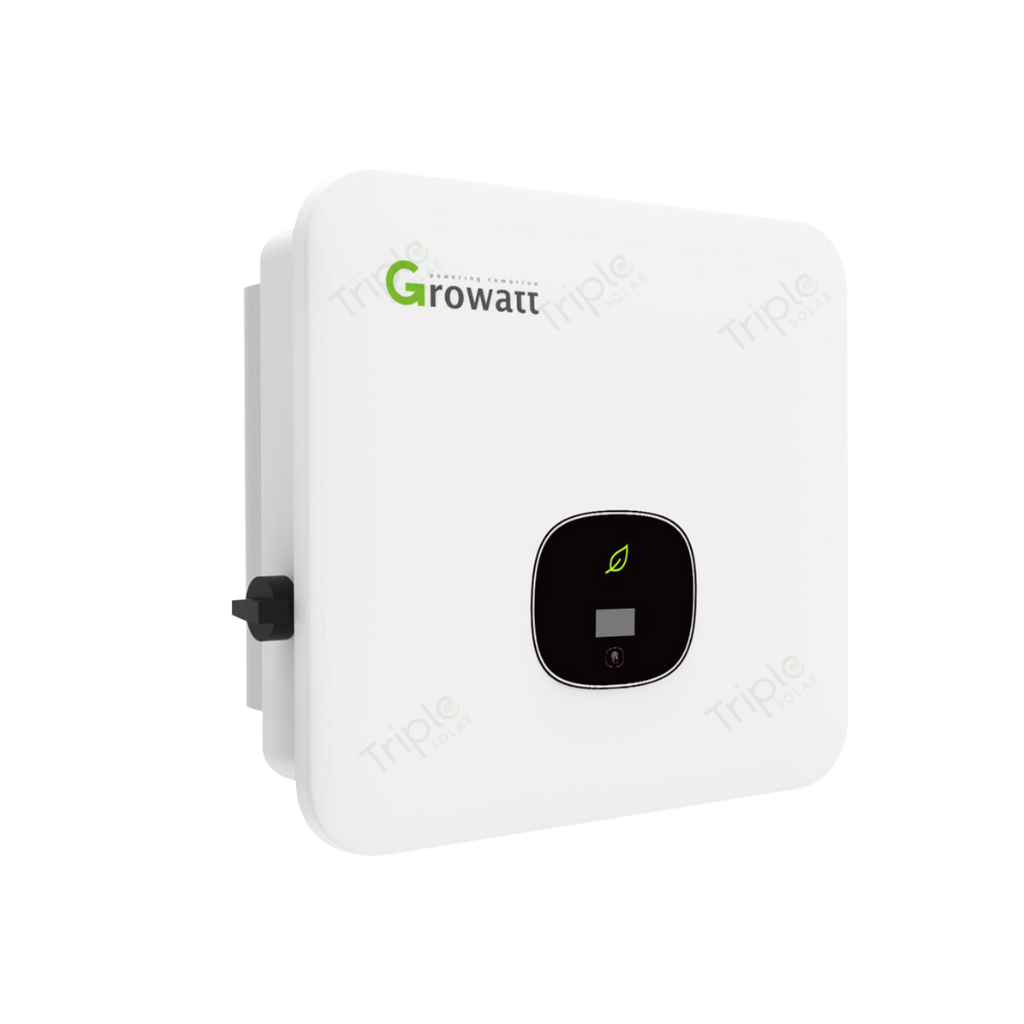

Growatt String 11Kw 3 phase with dual MPPT Strings inverter
The TL3-X series from Growatt are compact and light three phase inverters. With two MPPTs, the MOD 3-15K TL3-X series can be connected to two strings, and are therefore suitable for connecting two different panel arrays.
The Growatt TL3-X range offer a suitable solution for larger 3-phase residential systems, as well as smaller commercial systems. The compact design enables ease of transportation and installation, whilst the IP66 rating enables flexibility in location.
The ultra-low start-up and wide working voltages enable wider power generation windows.
AC attributes
- Max power:11000W
- Max current:18.3A
- Number of phases:3
DC attributes
- Number of MPPT2
- V range of MPPT140 - 1000V
- Max power16500W
- Max Isc current16A
- Max voltage1000V
- Start up voltage160V
System
- Max efficiency: 98.6%
- IP rating: IP66
- Weight: 16kg
- Dimensions: 425x387x178mm
- Communication: USB/RS485 (Optional- WiFi/GPRS/LAN/RF)
Key features
- Dual independent MPPTs
- Built-in DC switch
- High maximum efficiency 98.6%
- Touch key and OLED display
- Optional AFCI (Arc-Fault Circuit Interrupter function)
- IP66 protection grade
- Easy installation
| Brand: Growatt |
| Phases: 3-Phase |
| Inverter type: Dual MPPT Strings |
| Inverter Size: 11 KW |
| No. of MPPT: 2 |
| Max Isc per MPPT: 16 A |
| Rated Output Current: 18.3 A |
| Max Recommended PV Power: 16500 W |
| Start-up Voltage: 160 V |
