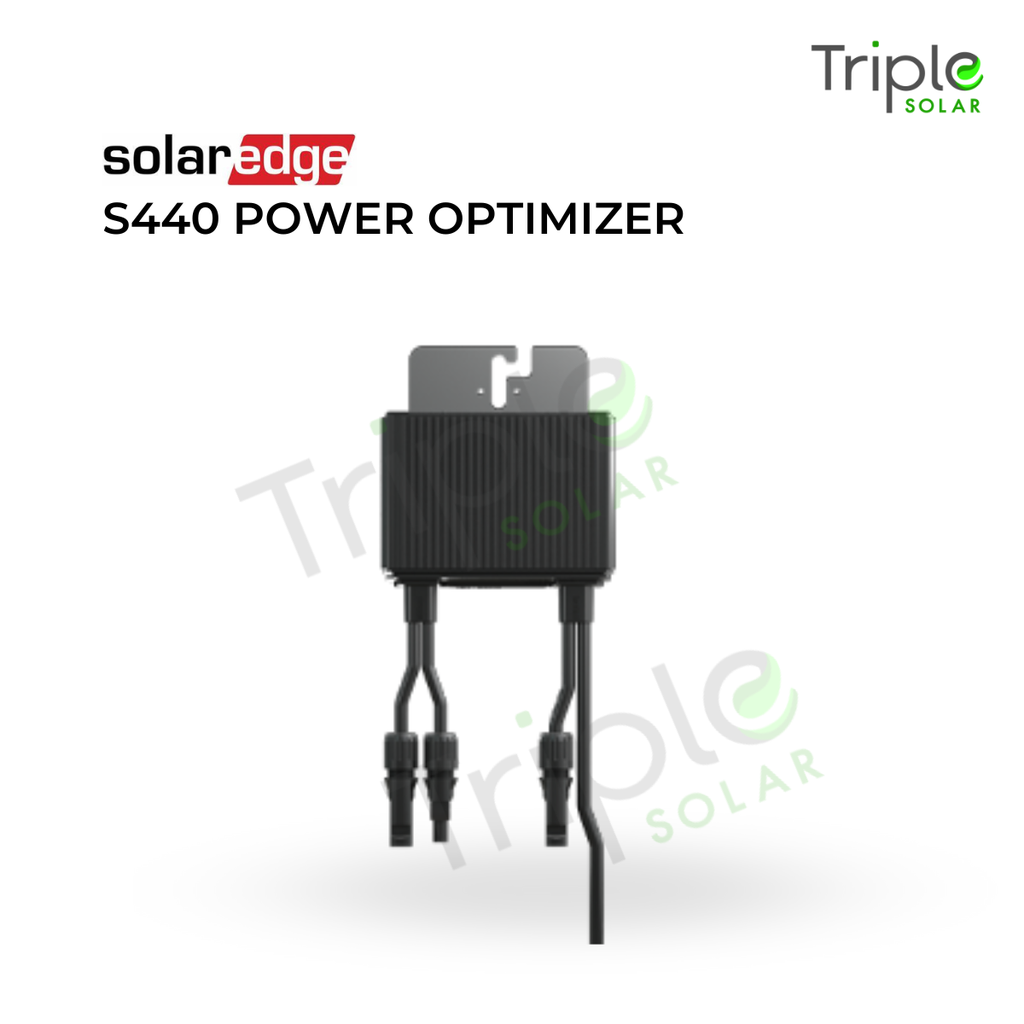

Solar Edge S440 Power Optimizer
The S440 Power Optimiser is suitable for use with high power modules with output up to 490W, provided that both Voc (60V) and Isc (15A ) are not exceeded.
Optimisers allow for uneven strings, longer strings, a mix of panel types and orientations on the same string, as well as reducing the impact of partial shading on the array.
Specifications:
- Max input Voc: 60V
- Max current Isc: 15A
- Minimum number of optimisers: 8
- Maximum number of optimisers: 25
| Max Isc per MPPT: 14.5A |
| Maximum Input voltage: 60V |
| IP rating: IP68 |
| Maximum Output Voltage: 60V |
| Rated input Power: 440W |
| Maximum MPPT Voltage: 60V |
| Maximum output current: 15A |
