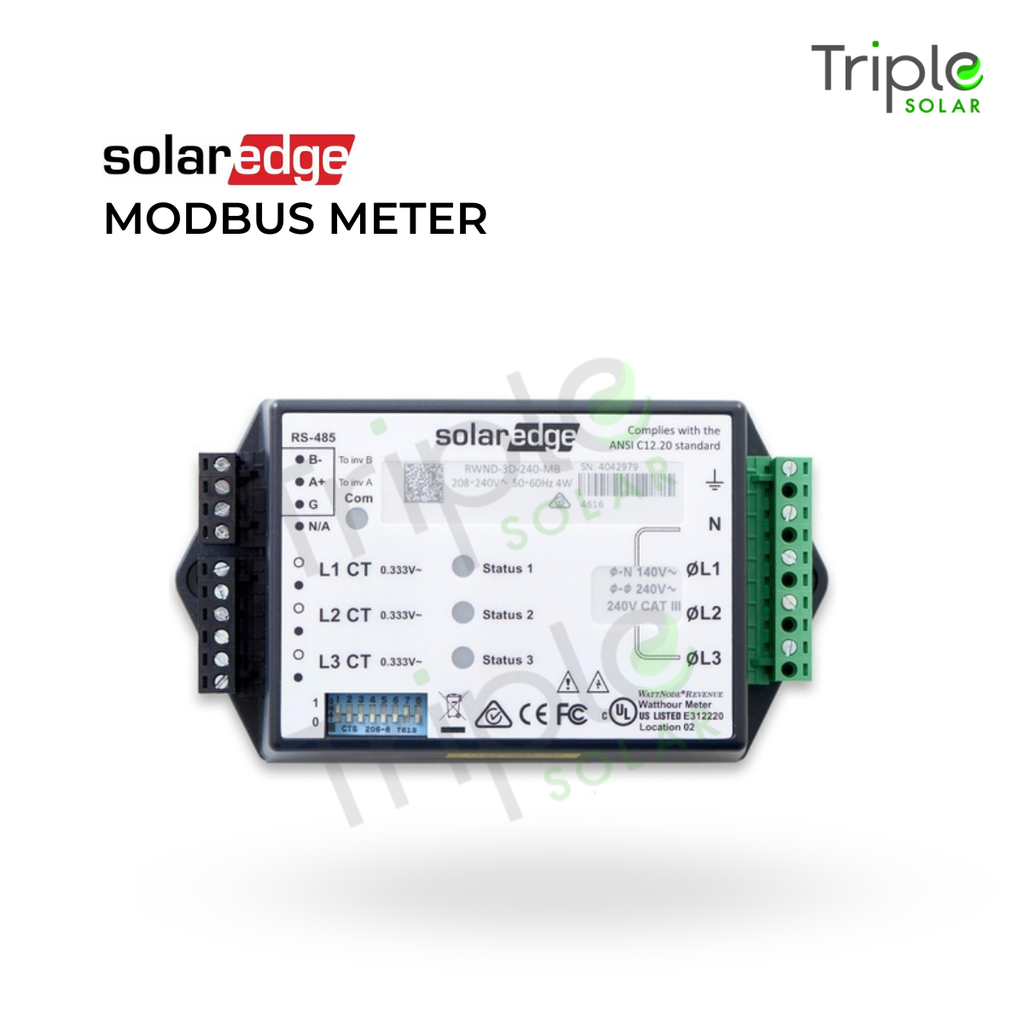

Solaredge Modbus Meter
The SolarEdge Energy Meter with Modbus connection is used for production, consumption, or import/export monitoring, and for export limitation. The meter has high-accuracy readings and by a wide selection of CT clamps, making it suitable for both residential and commercial installations.
The meter connects to the SolarEdge inverter or Control and Communication Gateway via RS-485. For installation and configuration instructions, refer to the export limitation application note below. The maximum distance for the data cable between the inverter and the meter is approximately 100 metres. If it's an RS-485 cable up to 1000 metres.
Features
- High accuracy meter readings for production/consumption
- monitoring Import/Export meter readings for export limitation
- Small and easy to install - fits in standard electrical panel
- Supports residential, commercial, and utility-size installations
Requires CT clamp (please select from options above).
Has to be the K2 version if being used for export limitation.
| Maximum Operating Voltage: 440V |
| IP rating: IP20 |
| Standby Power Consumption: 3W |
| Current Measurement Accuracy: 1.25% |
| CT Input voltage: 333mV |
