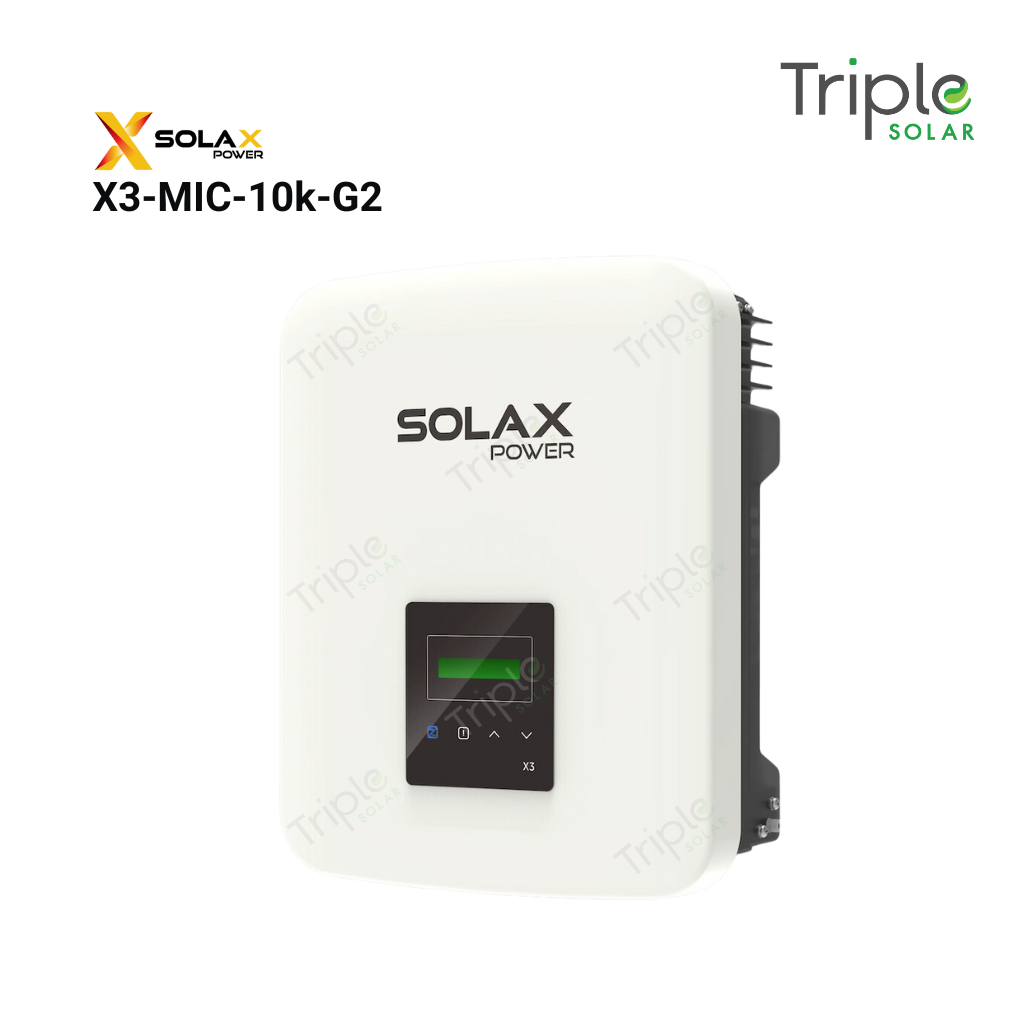

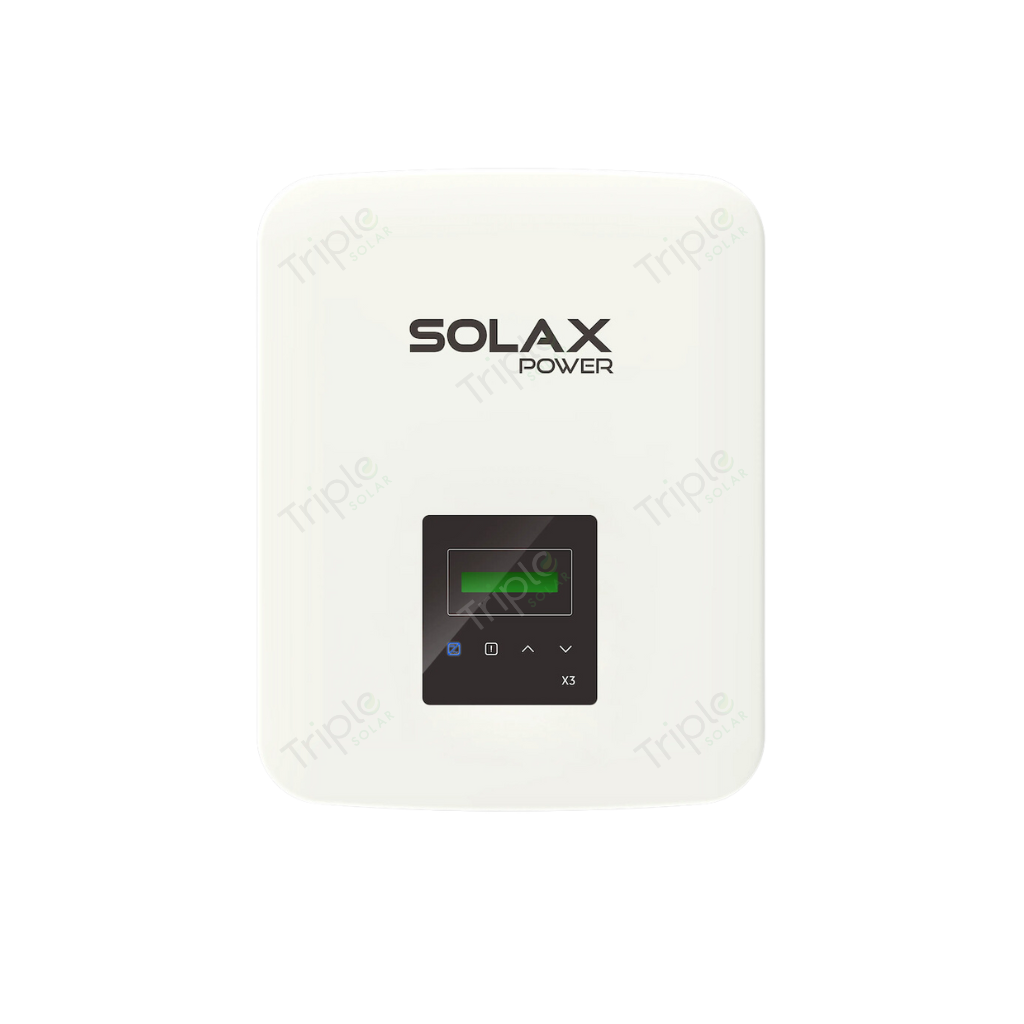

Solax String (X3- MIC-10k-G2)
Experience the power of the X3-MIC G2 inverter, combining high efficiency, safety, and intelligent features. With a maximum efficiency of 98.3% and 200% oversizing capability, maximize energy generation with ease. Enjoy smart functionalities like built-in export power control, remote setting and upgrading. Monitor your system effortlessly with multiple monitoring methods. The X3-MIC G2 is designed for economic performance and supports high-power solar panels, offering a compact solution that delivers exceptional power density. Unleash the true potential of your local energy system with the X3-MIC G2.
High Efficiency
Maximum efficiency up to 98.3%
Low start-up voltage, ultrawide MPPT voltage range
200% oversizing, 110% overloading output (Except 15kW model)
Global MPP scan for higher yield efficiency integrated
Safety
IP66 protection
SPD protection on both AC & DC integrated
AFCI protection (Optional)
Smart
Export power control integrated
Remote setting and upgrading
24h monitoring and maintenance (Optional)
Intelligent load management - heat pump (Adapter Box required)
Multiple monitoring methods supported (Optional: Wi-Fi/LAN/4G)
Economic
Ultrahigh power density
Max. MPP current per string is 16A, supporting high-power solar panels
| Brand: Solax |
| Phases: 3-Phase |
| Inverter type: Dual MPPT Strings |
| Inverter Size: 10.0Kw |
| No. of MPPT: 2 |
| Max Isc per MPPT: 20 A |
| Rated Output Current: 16 A |
| Max Recommended PV Power: 20000 W |
| Start-up Voltage: 150 V |
