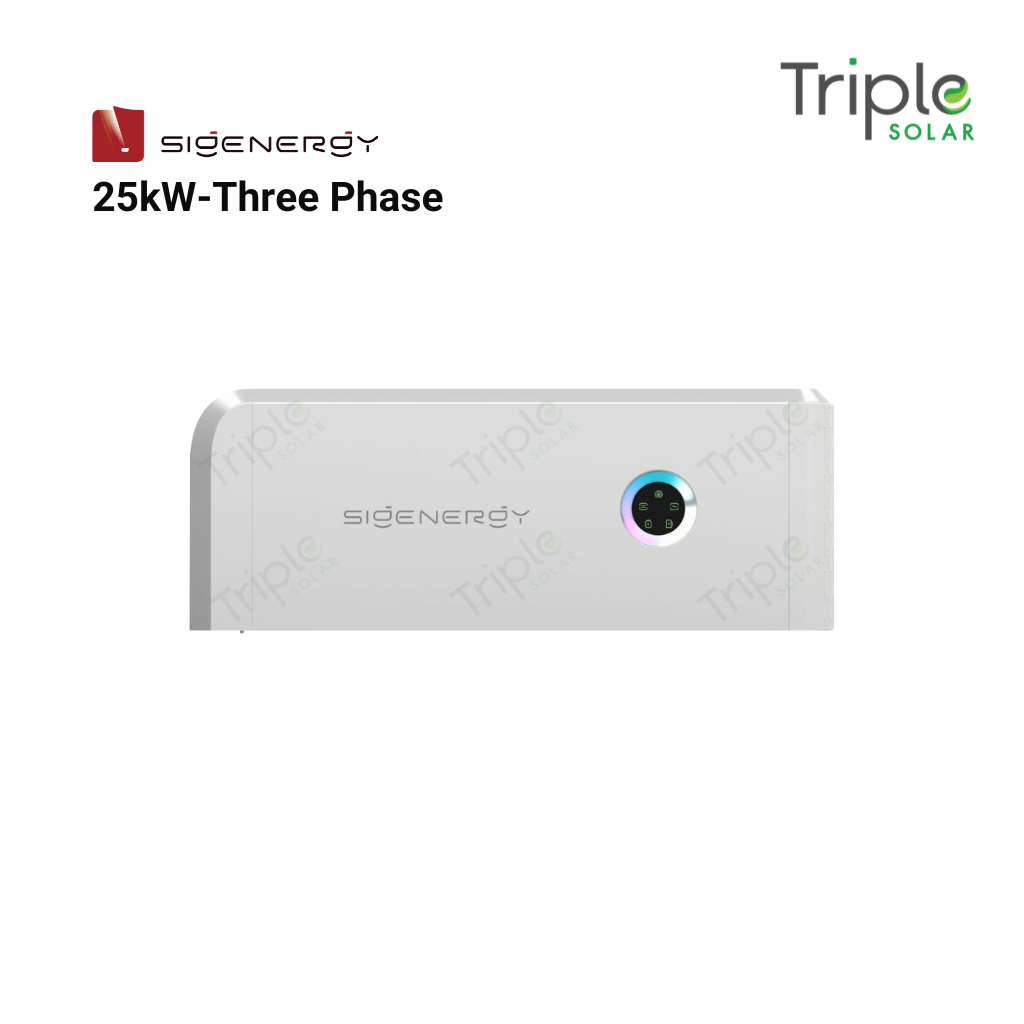

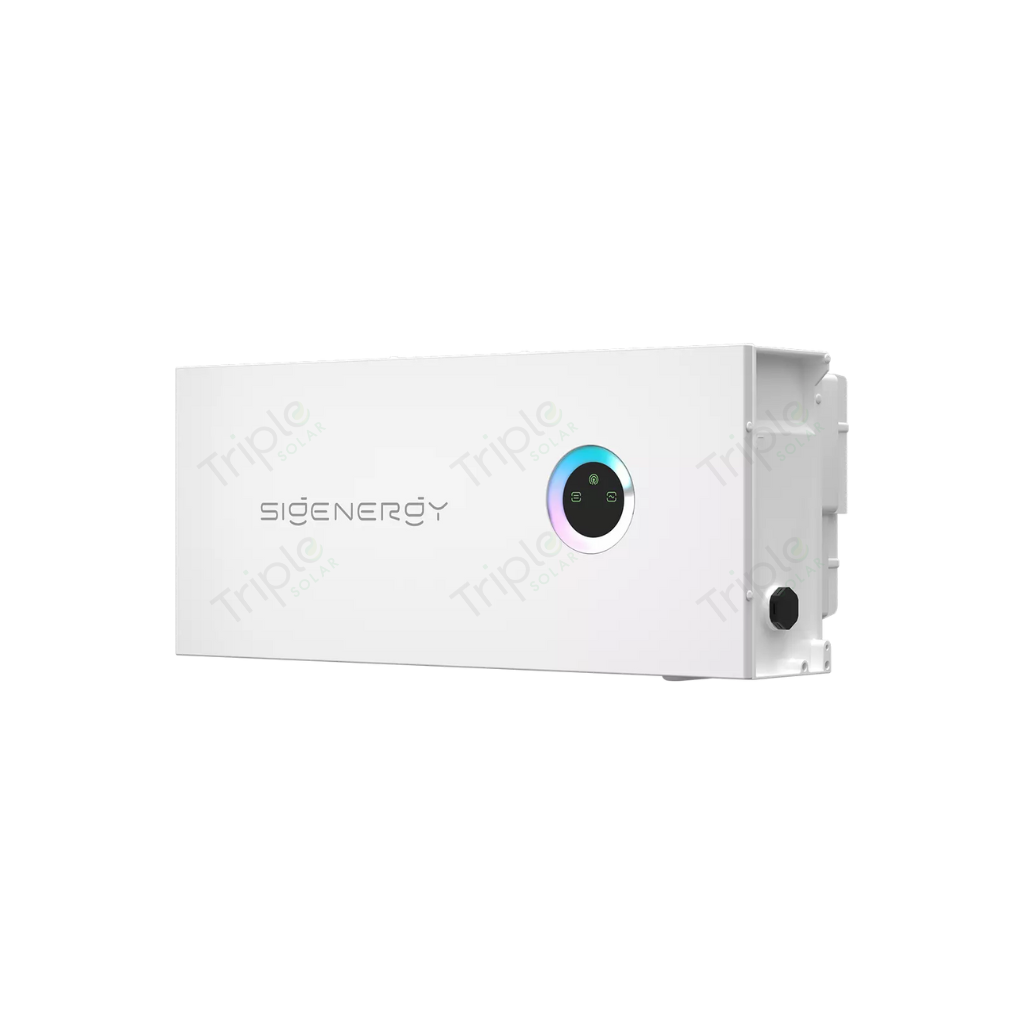

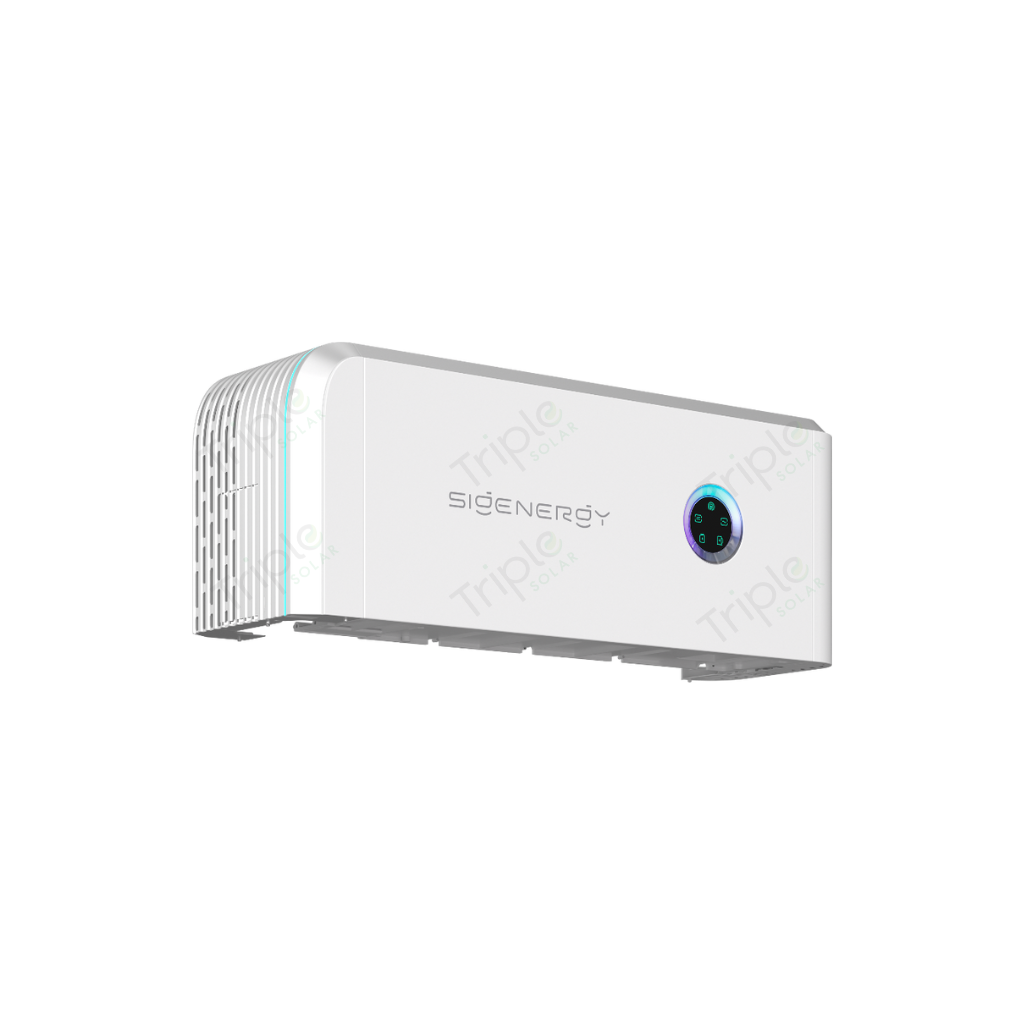

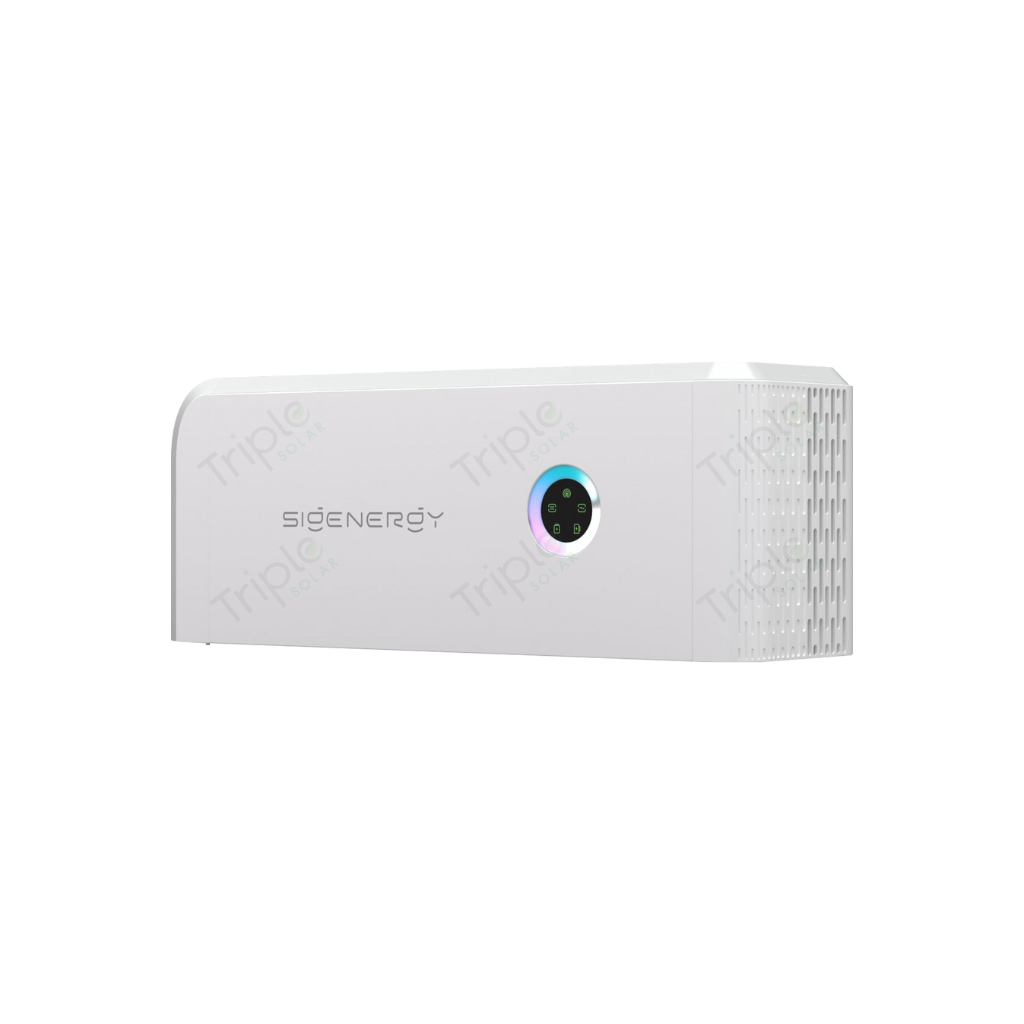

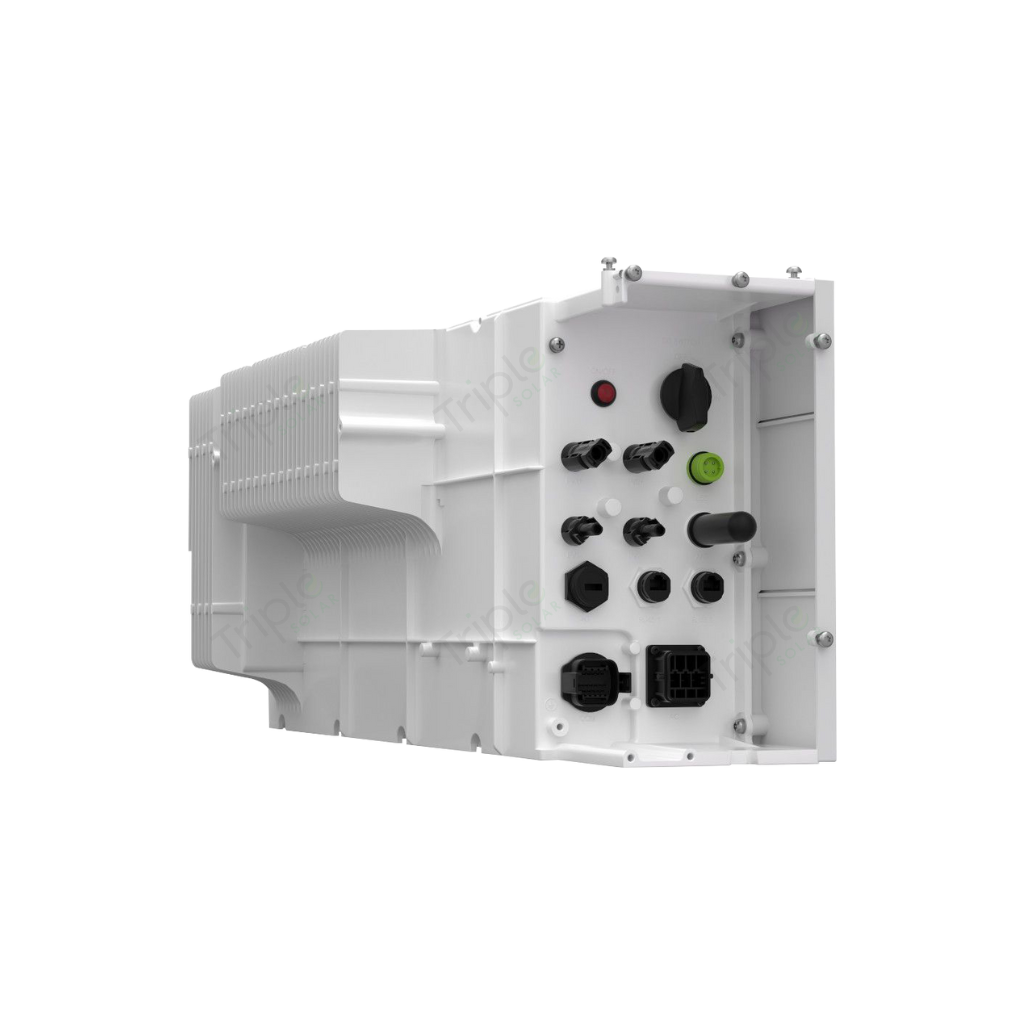

Sigen Energy Controller (25kW-Three Phase)
Introducing the Sigen Energy Controller EC 25.0 TP, a 25.0kW 3-phase Hybrid Inverter.
Battery Connection:
- Compatible with SigenStor BAT 5.0kWh and 8.0kWh
- Connect 1 to 6 batteries per inverter, allowing a maximum of 48kWh per inverter
- Mix and match batteries
- Up to 10 inverters per system
Maximum Battery Storage per System: 480kW

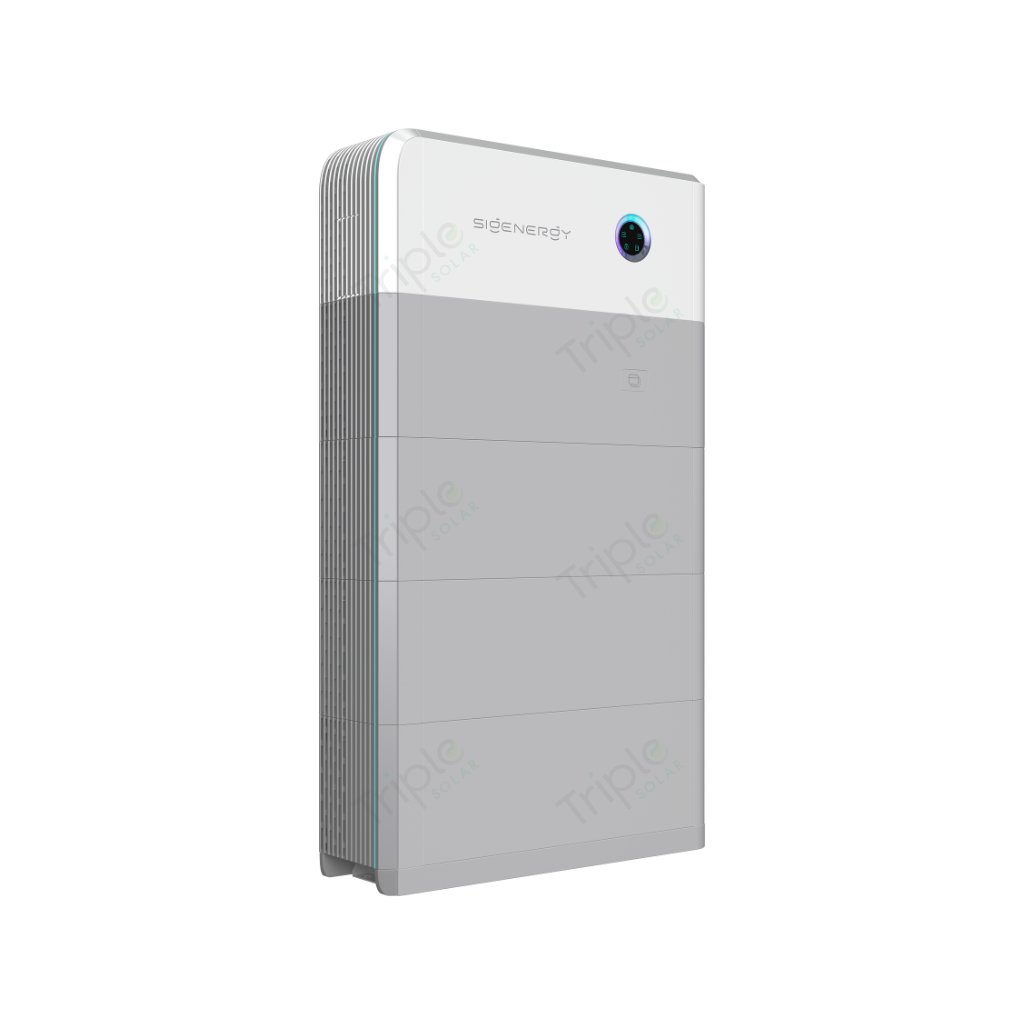

The SigenStor energy controller is a vital component of the SigenStor AI-optimized 5-in-1 Energy Storage System, seamlessly integrating a PV inverter, Battery Power Conversion System (PCS), EV DC Charger, Battery Pack, and Energy Management System (EMS).
Its flexible product options and scalable storage capacity cater to diverse applications: PV+ ESS, Battery-ready, Retrofit, and Backup.
Highlighted by an elegant front eagle eye and ambient side lighting, the SigenStor ESS harmoniously blends with surroundings, delivering energy independence with efficiency, savings, flexibility, and resilience.
Key Features:
- Four MPP trackers
- Built-in EMS for precision control
- Multi-source black start capability
- DC ground-fault protection
- Maximum short-circuit Current per MPPT: 20A
- DC/AC ratio up to 1.6
- IP66 protection
- Smart Air Cooling
- Communication: WLAN, Ethernet, RS485, Sigen CommMod (4G/3G/2G)
- 10-year warranty
- G99 and G100 Certified
- Requires at least one SigenStor BAT5 or BAT8 for operation
- Components are interdependent, excluding the optional EV DC charger.
| Brand: Sigenergy |
| Phases: 3-Phase |
| Inverter type: Hybrid |
| Inverter Size: 25Kw |
| No. of MPPT: 4 |
| Max Isc per MPPT: 20 A |
| Rated Output Current: 41.8 A |
| Max Recommended PV Power: 40000 W |
| Start-up Voltage: 180 V |
