Sigen Energy Controller (10kW-Three Phase)

https://triplesolar.co.uk/web/image/product.template/1774/image_1920?unique=e3d5194
(0 review)

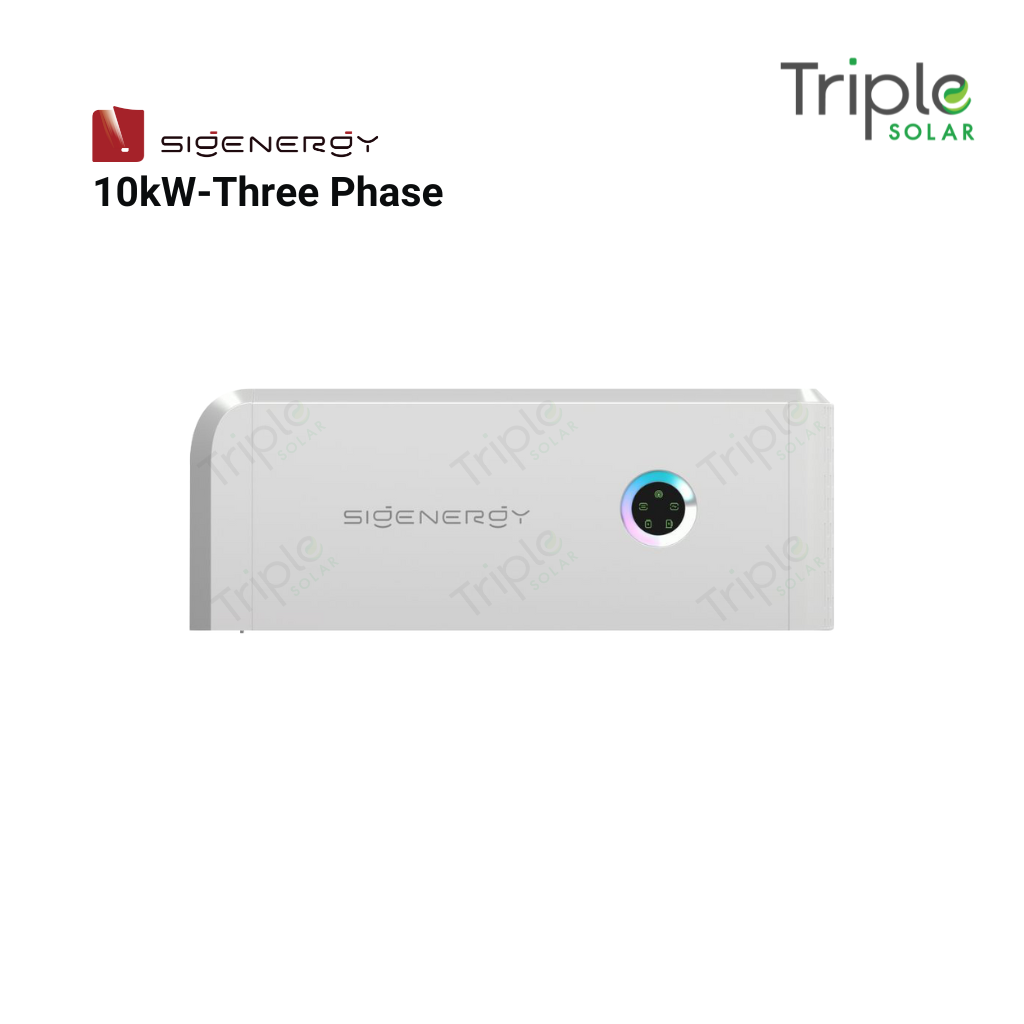

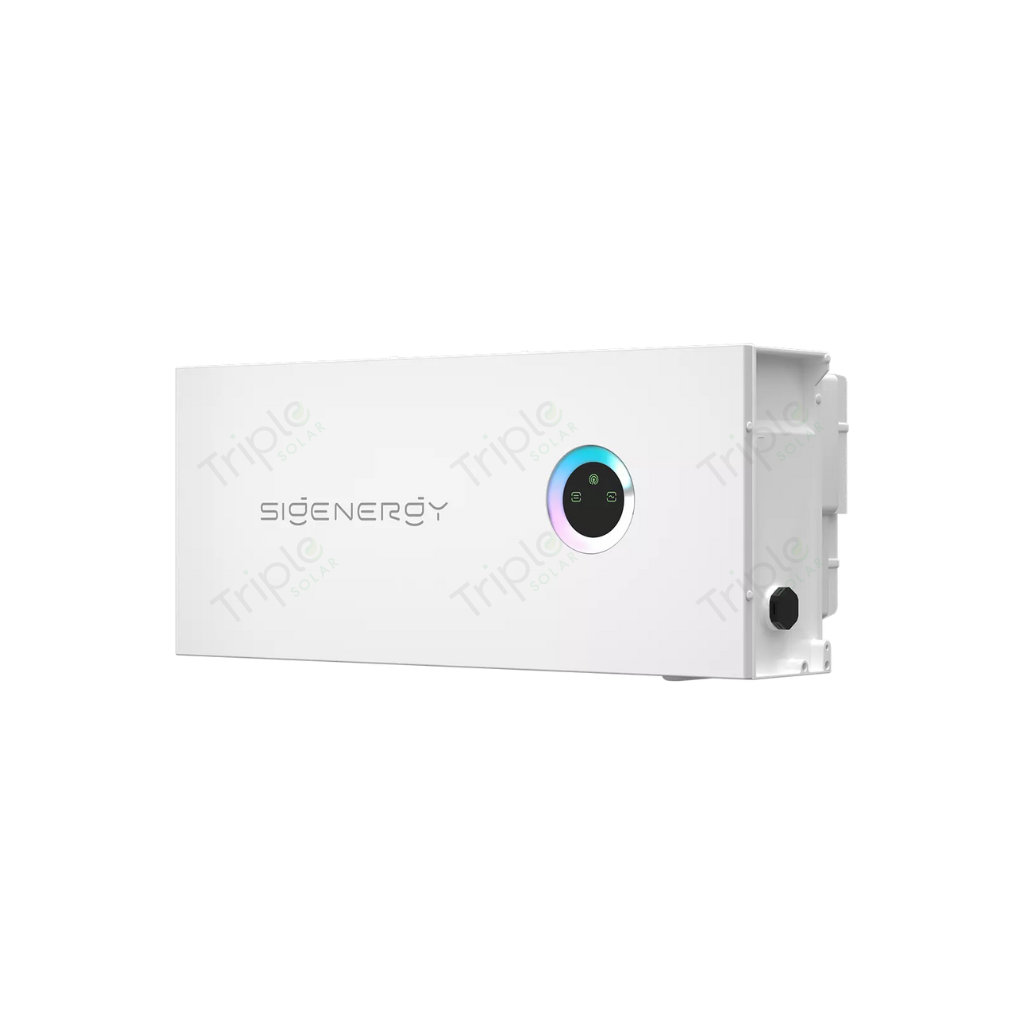

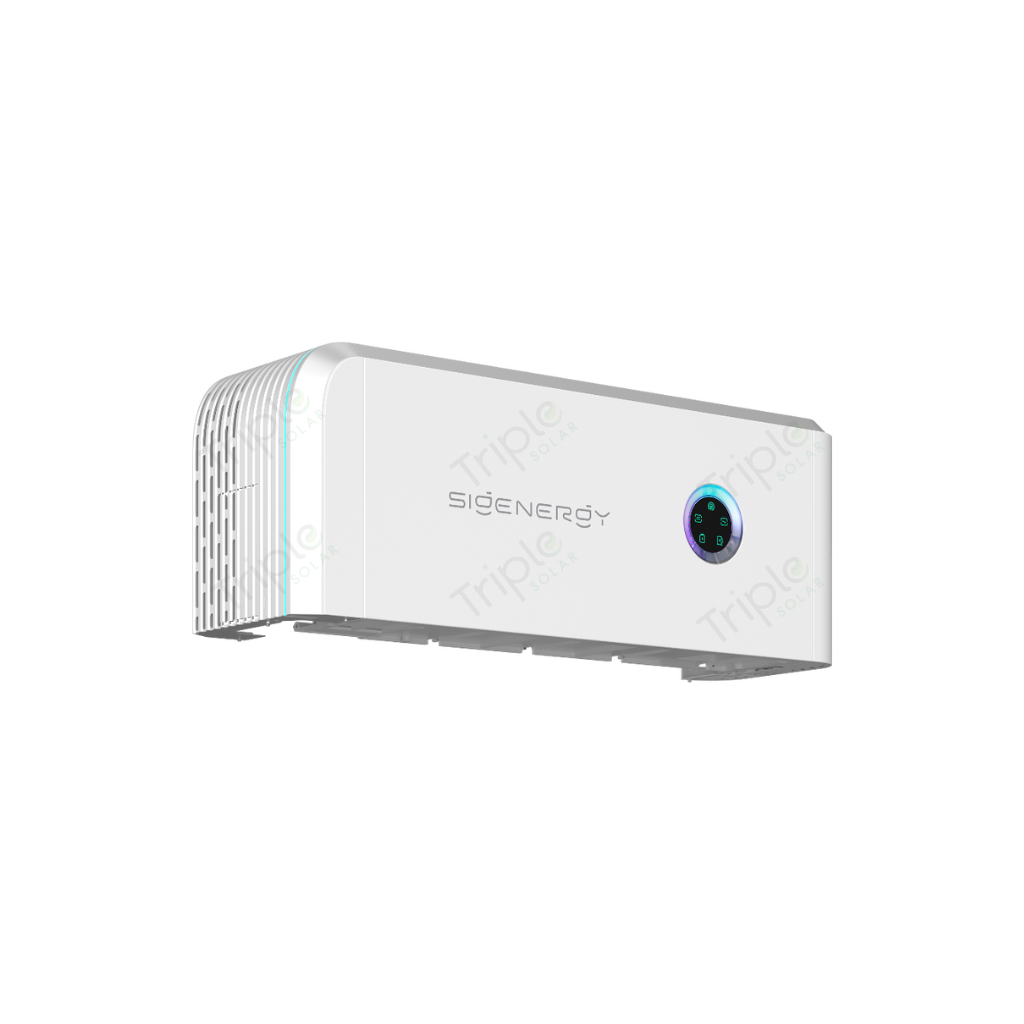

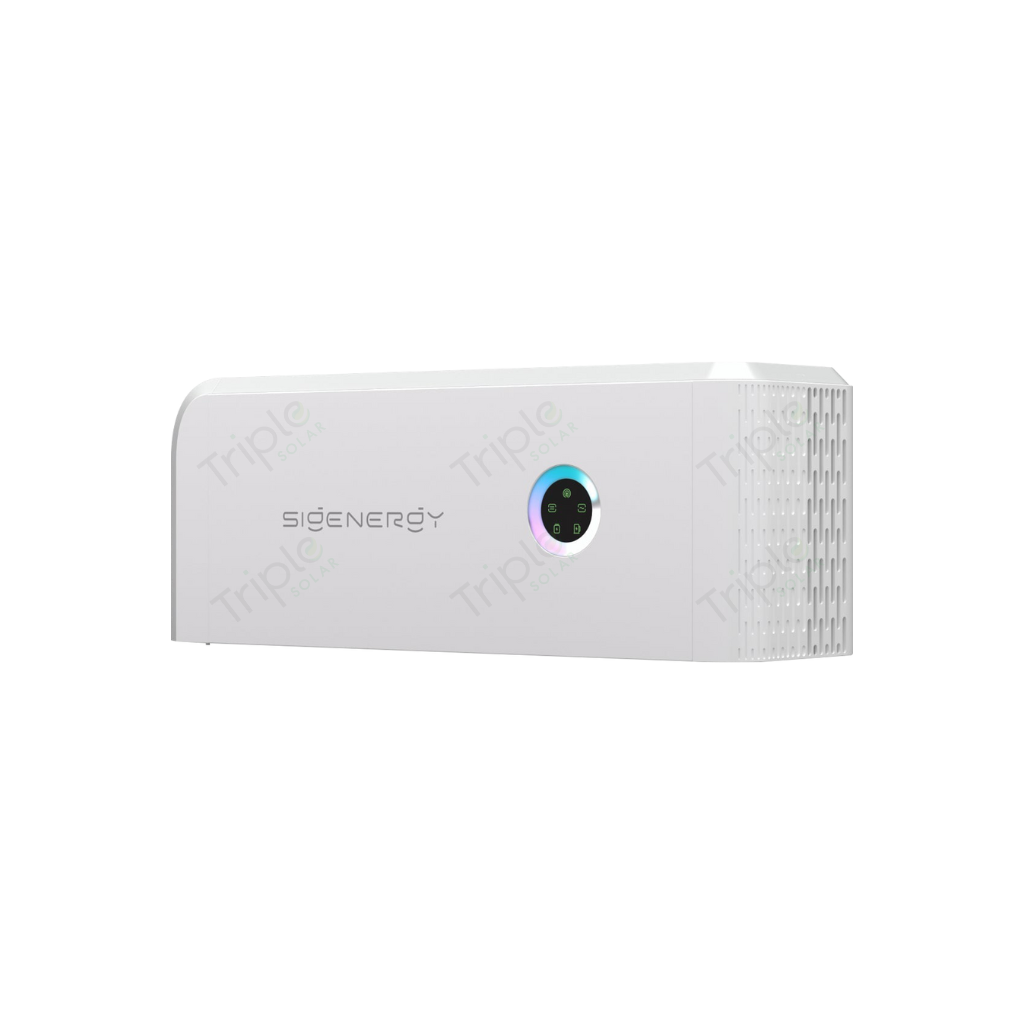

Sigen Energy Controller 10.0 kW Three Phase Hybrid

The Sigen Energy Controller EC 10.0 TP, a robust 10.0kW, 3Ph, Hybrid Inverter, plays a pivotal role in seamlessly integrating and optimizing the SigenStor AI-enhanced 5-in-1 Energy Storage System. Tailored for efficiency, savings, flexibility, and resilience, this controller ensures precise control and energy independence across various application scenarios.

Battery Connection:

  • Compatible with SigenStor BAT 5.0kWh and 8.0kWh
  • 1 to 6 batteries per inverter (controller) - Max 48kWh per inverter
  • Mix and match batteries
  • Up to 10 inverters per system
  • Maximum Battery Storage per System: 480kW

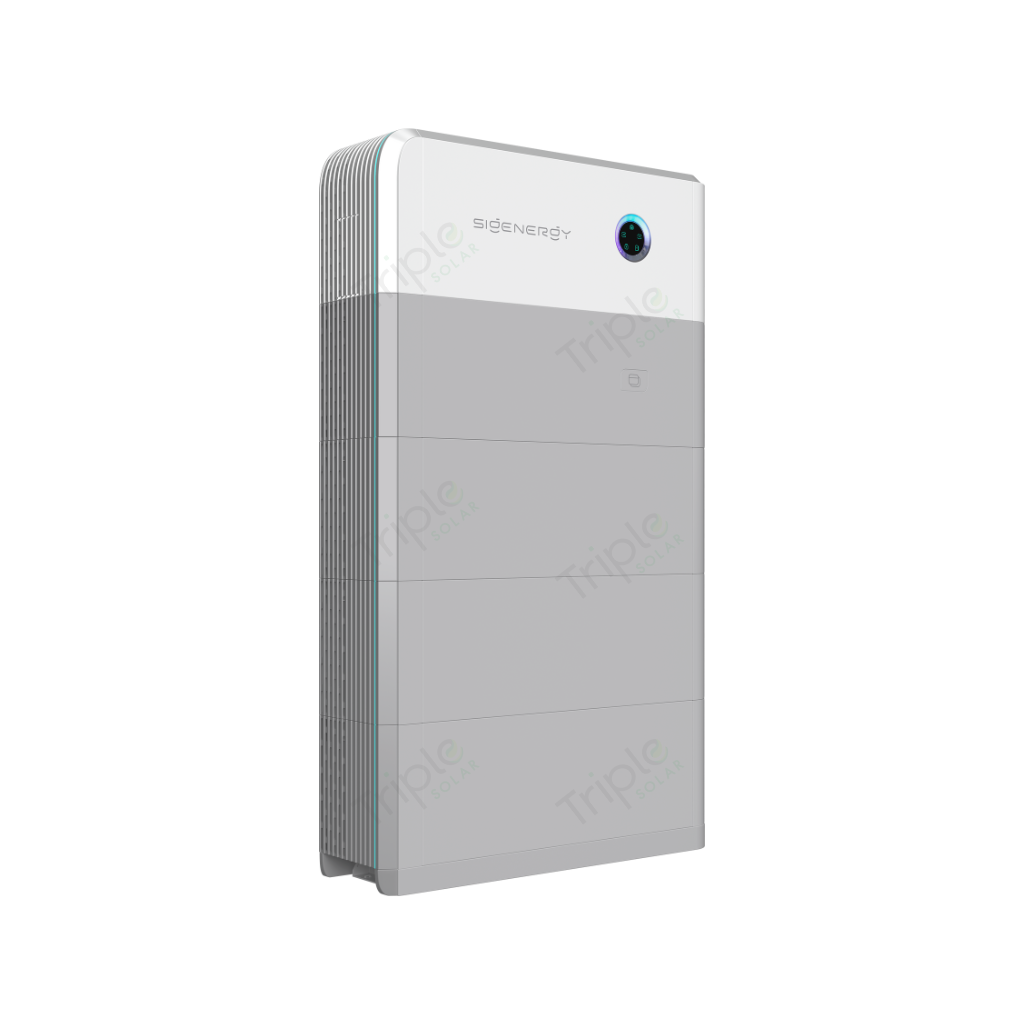

    The SigenStor energy controller is an integral part of the SigenStor 5-in-1 Energy Storage System, harmoniously integrating PV inverter, Battery Power Conversion System (PCS), EV DC Charger for electric vehicles, Battery Pack, and Energy Management System (EMS). Versatility is key, with application scenarios including PV+ ESS, Battery-ready, Retrofit, and Backup.

    Distinguished by its stylish front eagle eye and side ambient lighting, the SigenStor ESS complements any environment, providing energy independence with maximum efficiency.

    Key Features:
  • Three MPP trackers
  • Integrated EMS for precise control
  • Multi-source black start capability
  • DC ground-fault protection
  • Maximum short-circuit Current per MPPT: 20A
  • DC/AC ratio up to 1.6
  • IP66 protection for durability
  • Smart Air Cooling for efficient temperature management
  • Communication options: WLAN, Ethernet, RS485, Sigen CommMod (4G/3G/2G)
  • Impressive 10-year warranty for peace of mind
  • G98 and G100 certified
  • The SigenStor EC requires at least one SigenStor BAT5 or SigenStor BAT8 for operation
  • Note: The SigenStor ESS components are interdependent, except for the optional EV DC charger.
    Elevate your energy management with the Sigen Energy Controller EC 10.0 TP, ensuring a seamless integration with advanced features for enhanced control and reliability.


Please Sign in or Register to see Trade Prices

2643.23 GBP £ 2,643.23 Tax Excluded

£ 2,643.23 Tax Excluded

  • Brand
  • Phases
  • Inverter type
  • Inverter Size
  • No. of MPPT
  • Max Isc per MPPT
  • Rated Output Current
  • Max Recommended PV Power
  • Start-up Voltage

This combination does not exist.

Out of Stock
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Brand: Sigenergy
Phases: 3-Phase
Inverter type: Hybrid
Inverter Size: 10Kw
No. of MPPT: 3
Max Isc per MPPT: 20 A
Rated Output Current: 16.7 A
Max Recommended PV Power: 16000 W
Start-up Voltage: 180 V
