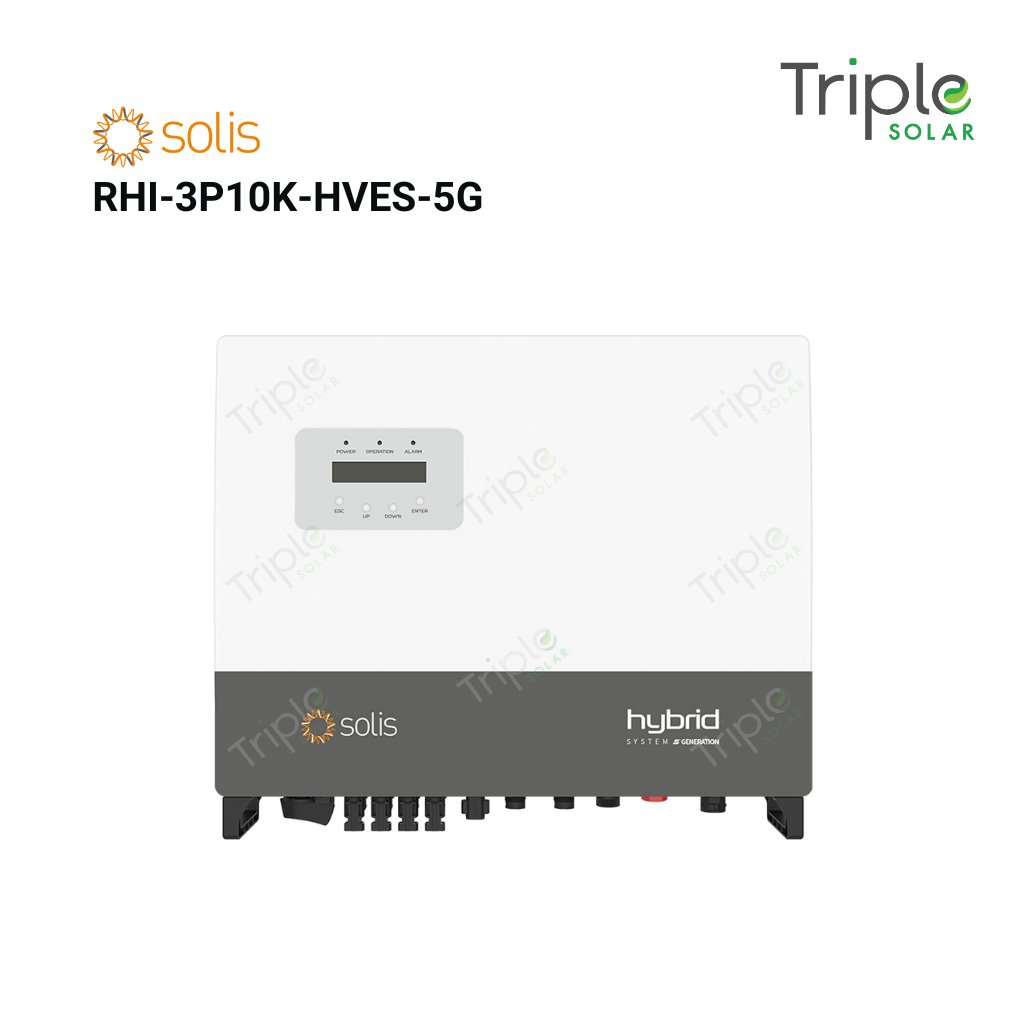

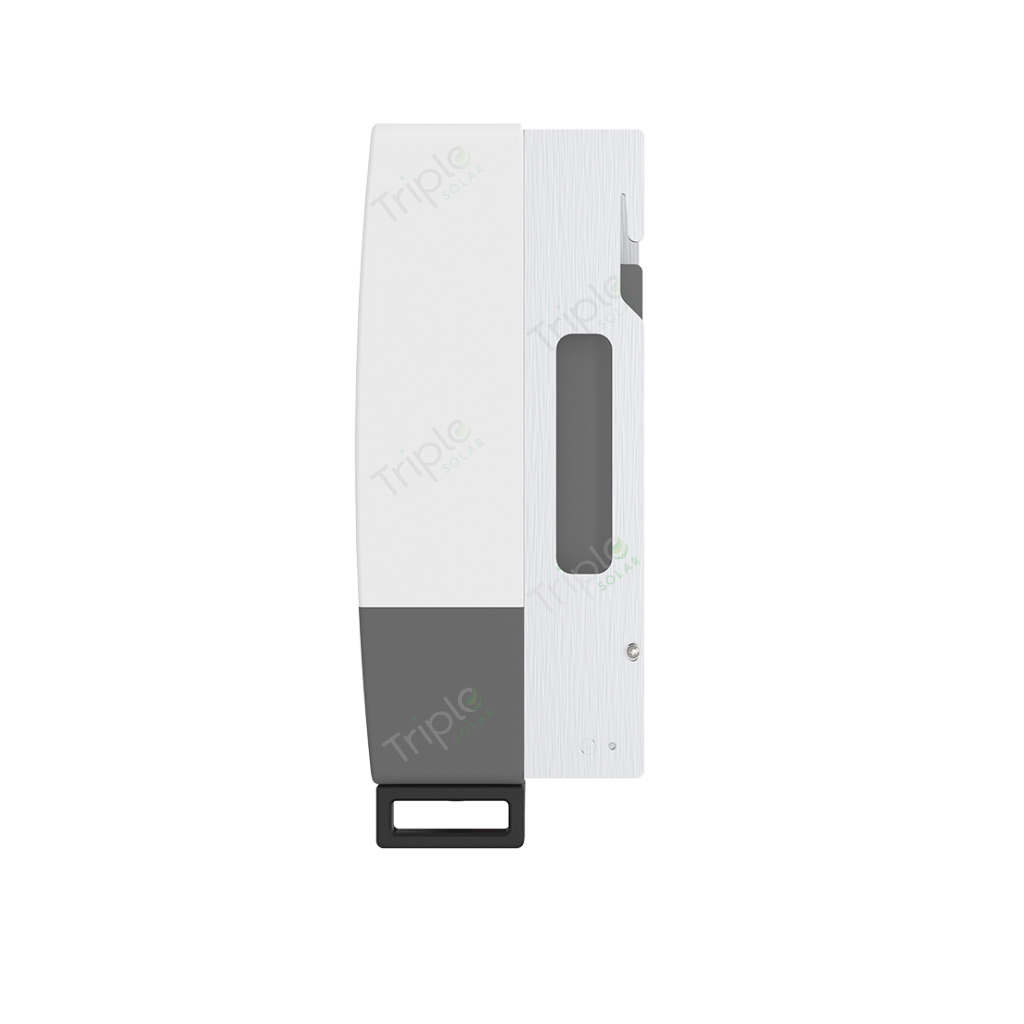

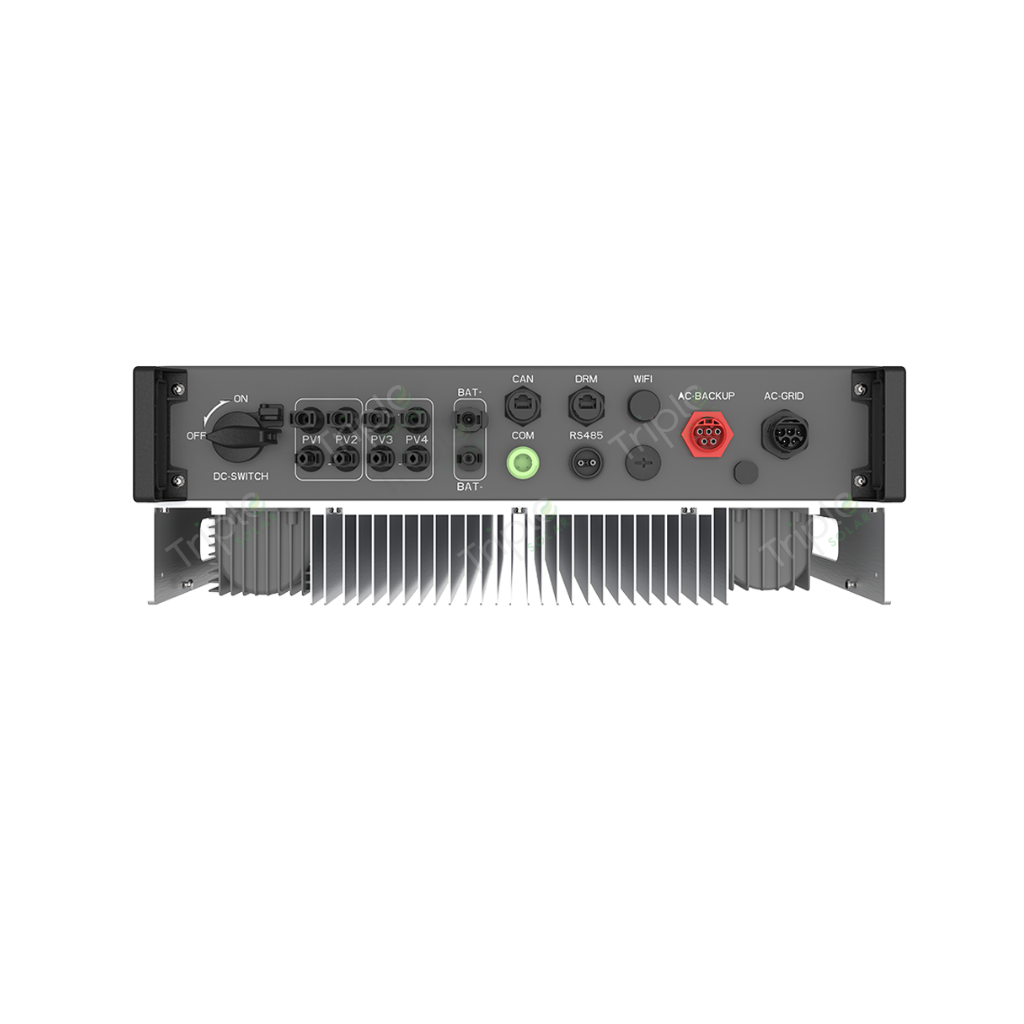

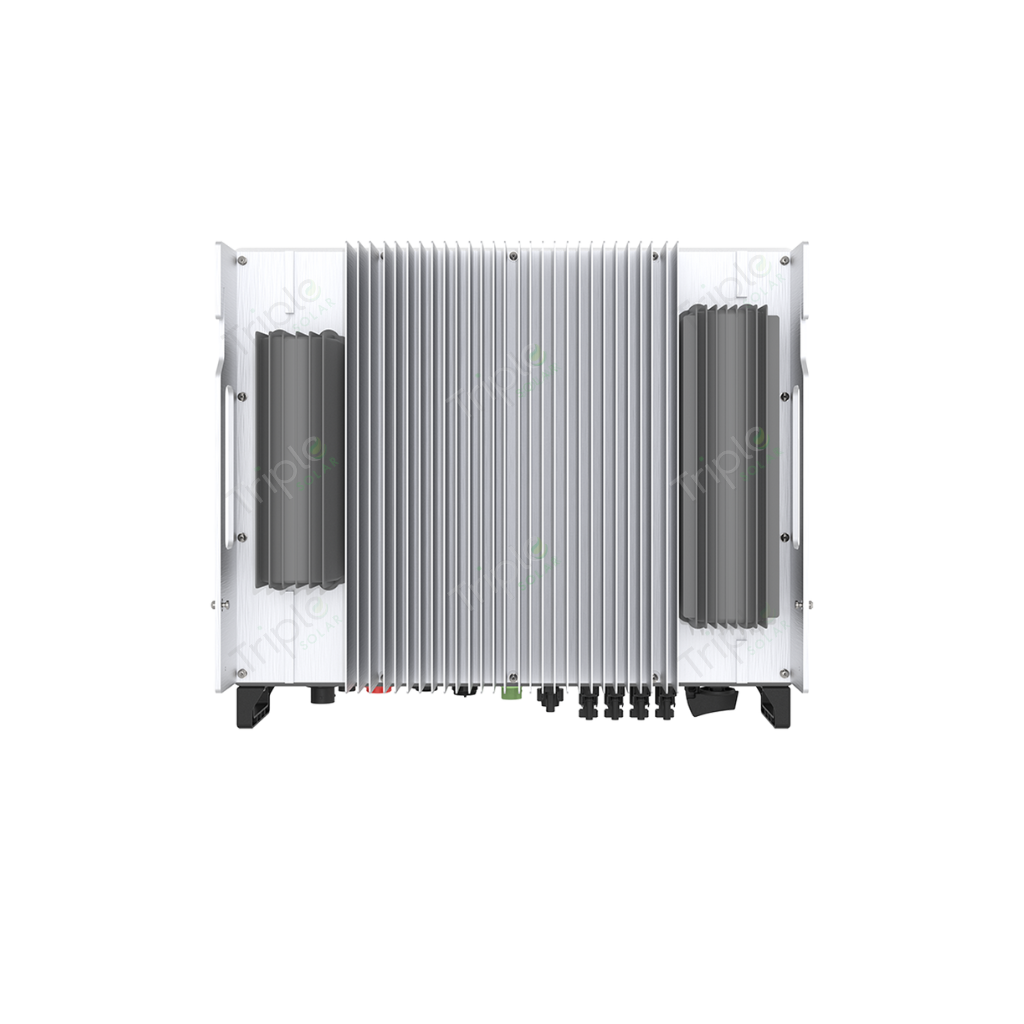

Solis Hybrid (RHI-3P10K-HVES-5G)
Features:
▶ Max. efficiency 98.4%
▶ 2 MPPT and 4 DC input; Max 26A DC input current
▶ 3 operating modes (self-consumption; time-of-use; off-grid
back-up) & programmable energy management
▶ Power supply can be switched automatically and switching
time within 40ms
▶ Ensures AC backup for up to 10kW of continuous power and
16kVA of peak power
▶ Time of use shifting and peak shaving capabilities to grid
▶ Solis supply optional arc fault circuit interrupter (AFCI) function
▶ Intelligent EMS function
▶ Support three-phase imbalance on backup output port
▶ 24-hour fully intelligent energy management, Real-time
grasp of PV plant status
▶ Remotely control & upgrade function, making digital power
plant maintenance at your fingertips
Phases: 3-Phase |
Inverter type: Hybrid |
Inverter Size: 10Kw |
No. of MPPT: 2 |
Max Isc per MPPT: 39 A |
Rated Output Current: 16.7 A |
Max Recommended PV Power: 16000 W |
Start-up Voltage: 160 V |
