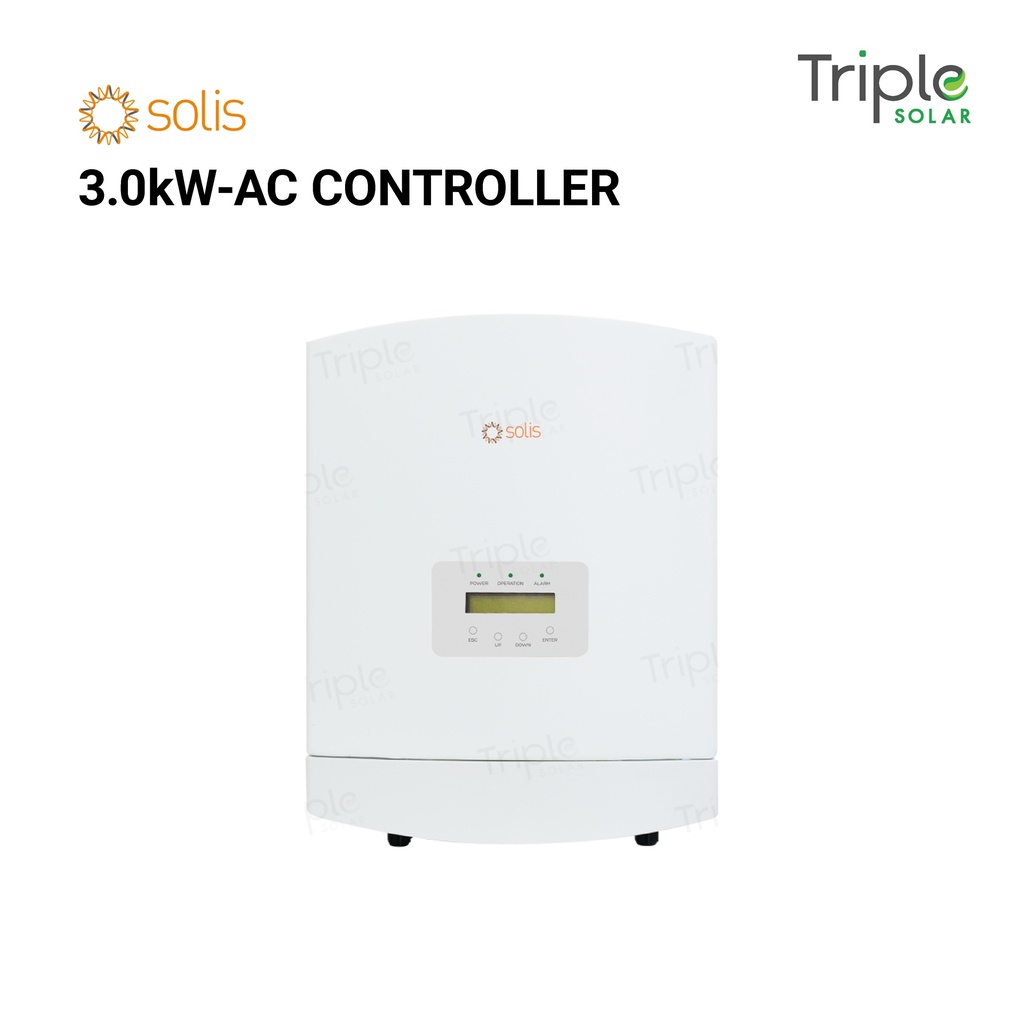

Solis AC Controller 3Kw single phase inverter | RAI-3K-48ES-5G
The SOLIS RAI-3K-48ES-5G is a 3.0kW AC-coupled battery charger and inverter designed for residential energy storage systems. It features an IP65 rating and natural cooling for quiet operation. This device is compatible with various PV array configurations, including those with dual tracker inverters, micro-inverters, or power optimizers. It supports multiple operating modes and incorporates an advanced Battery Management System (BMS) for optimized battery usage. The controller can charge batteries from both solar panels and the grid, making it suitable for dual tariff systems. It includes an energy meter with a CT clamp for power flow monitoring and is compatible with PylonTech battery modules. An optional Wi-Fi stick enables remote monitoring and configuration. With its versatile design, the RAI-3K-48ES-5G efficiently integrates battery storage with new or existing solar installations, enhancing energy independence and maximizing the benefits of solar PV systems.
| Brand: Solis |
| Phases: 1-Phase |
| Inverter type: AC Controller |
| Inverter Size: 3.0Kw |
| Rated Output Current: 20 A |
| Max AC Apparent Power: 4500 VA |
