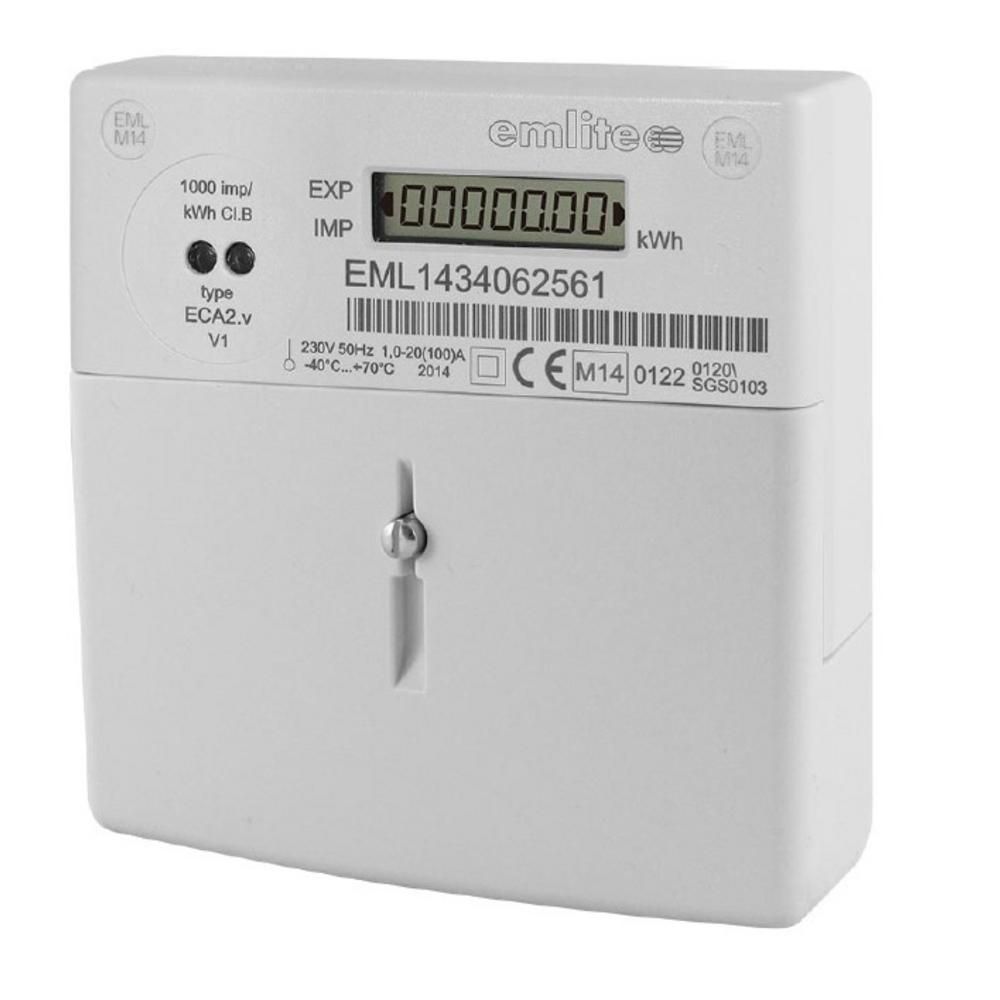

Emlite Gen Meter with Cover (1-Ph)

https://triplesolar.co.uk/web/image/product.template/763/image_1920?unique=9c5e8d4
(0 review)

Single phase ECA2 meter Z version without pulsed output (this is not the flashing LED but actually a physical connection with a transistor output normally used with Data loggers, but rarely used in PV metering).

  • The ECA2 single phase meter is one of the worlds most compact metering devices allowing the unit to be used in metering installations where space is at a premium.
  • The meter provides measurement of active (kWh) energy in both import and export directions with registers shown on the large easy to read LCD display. The display features 8×3.5mm characters and can be configured to auto cycle any of the available registers or remain static with only a single register viewable.
  • The meter features an optical port conforming to IEC 629056-21 allowing meter readings to be collected electronically using a standard probe and software tool. The port also allows configuration of the meter.
  • The electronic meter is highly reliable and capable of withstanding high voltage events and overcurrent without failure. The meter is resistant to tamper with reverse energy fraud detection and sealing for life.
  • High quality solid brass cable terminals are used allowing 100 Amp operation.
  • To enable the connection of energy management systems, an electronic pulsed output version is available. The pulsed output connects onto two auxiliary terminals in the main terminal block.


Please Sign in or Register to see Trade Prices

26.0 GBP £ 26.00 Tax Excluded

£ 29.95 Tax Excluded

  • Phases
  • Maximum Input current
  • Fitting Type
  • Rated uninterrupted Current

This combination does not exist.

Out of Stock
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Phases: 1-Phase
Maximum Input current: 100 A
Fitting Type: Wall Mounted
Rated uninterrupted Current: 100 A
