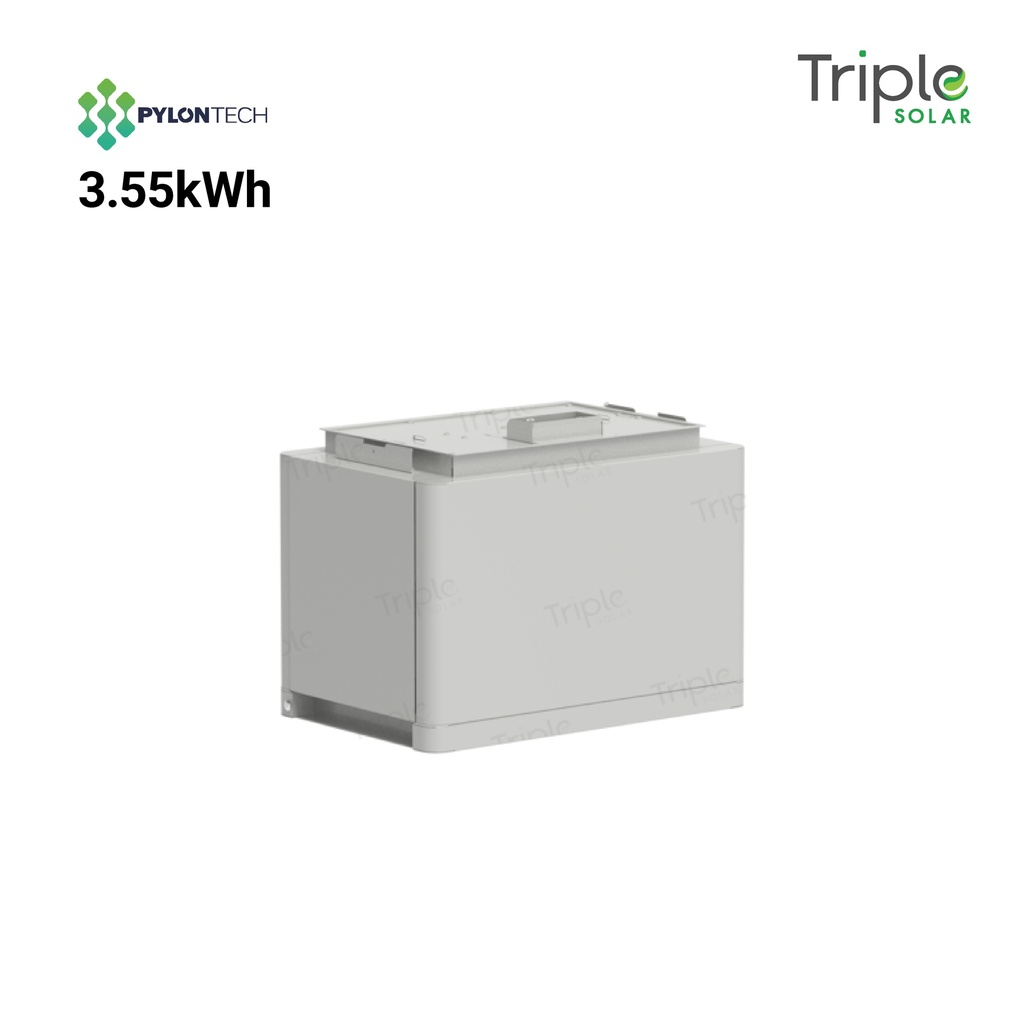

Pylontech Force H2 3.55kWh Lithium Ion battery | Force-H2-FH9637M
The Force H2 is the latest version of High voltage battery storage system from Pylontech. The new system design provides an easy to connect that saves time for installers. Ideal for large home and small commercial applications, the stacking system provides flexibles configurations from 96V to 384V and 7.1kWh to 14.21kWh capacity. In other words, 2 to 4 modules can be used per system and the base PYL-F-H2-BMU-BASE is required.
- Flexible Module Design
- Reliable Performance
- 90% DoD with more usable capacity
- IP 55 class protection
Important
MAX DISCHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS Please ensure that you check the inverter settings are below the maximum allowed voltage BEFORE plugging in the UTILITY/SOLAR to the inverter.Weight: 35 kgBattery Type: Lithium IonNominal Energy: 3552 WhDepth of discharge: 90.00 %Voltage: 96 VContinuous Discharge Rate (Normal Use): 1776 WMaximum Discharge Rate (5 Minutes): 3840 WSurge Discharge Rate (15 Seconds): 3840 WMaximum Charge Rate (5 Minutes): 1776 W
| Brand: Pylontech |
| Battery Type: HV |
| Battery Capacity: 3.55kWh |
| Battery Chemistry: Lithium Ion |
| Maximum Operating Voltage: 96 V |
| Max Charging Current: 37 A |
